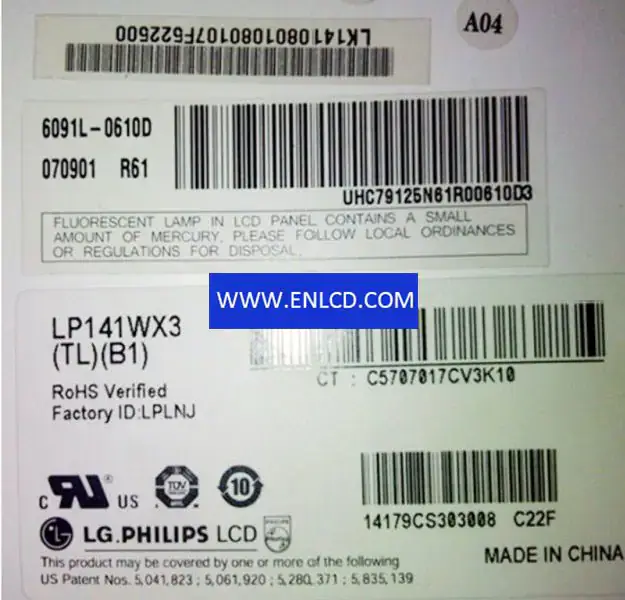

LP141WX3-TLB1 LG Display LCD panel replacement

Brand：LG.Philips LCD
Model：LP141WX3-TLB1 (LPLE800) 18 Compatible
Diagonal Size：14.1 inch
Type：a-Si TFT-LCD, LCM
Pixel Format：1280(RGB)×800[WXGA]
Configuration：RGB Vertical Stripe
Active Area：303.74(H)×189.84(V) mm
Outline Dim.：319.5(H)×205.5(V)×5.5(D) mm
Bezel Area：307.96(H)×194.6(V) mm
Treatment：Glare (Haze 0%)
Luminance：200 cd/m2 (Typ.)
Contrast Ratio：300:1 (Min.) (TM)
View Direction：6 o’clock
Response Time：5.5/10.5 (Typ.)(Tr/Td)
Viewing Angle：40/40/15/35 (Min.)(CR≥10)
Operating Mode：TN, Normally White, Transmissive
Support Color：262K 45%(CIE1931)
Light Source：CCFL[1 pcs], 15K hours, W/O Driver
Form Style： Wedge (PCBA Bent, Depth ≥5.2mm)
Designed For： Laptop,
Frame Rate：60Hz
Touch Panel：Without
Interface Type： 30 pinsLVDS (1 ch, 6-bit), Connector
Power Supply：3.3V (Typ.)
Environment： Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
