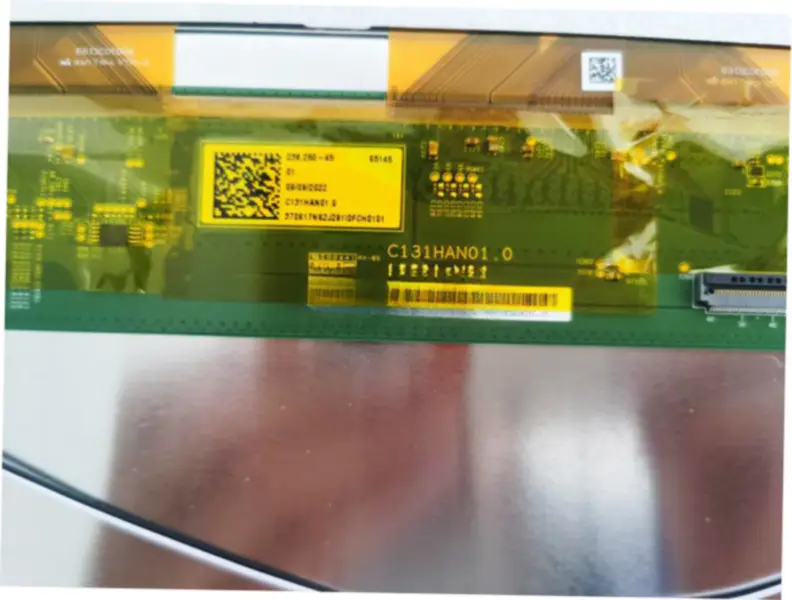

AUO C131HAN01.0 LCD

Specification

Model P/N:C131HAN01.0
Brand:AUO
Diagonal Size:13.1"
Resolution:-
Contrast Ratio:-
Viewing Angle:80/80/80/80 (Typ.)(CR≥10)
Color Depth:16.7M
Backlight:No B/L
Signal Type:LVDS (2 ch, 8-bit) , FPC 64 pins
Panel Type:a-Si TFT-LCD, CELL , FOB
Pixel Format:RGB Vertical Stripe
Active Area:299.52(W)×145.392(H) mm
Bezel Opening:-
Treatment:-
Luminance:0 cd/m²
Response:-
Good View at:Symmetry
Work Mode:AHVA, Normally Black, Transmissive
Mass:-
Used for:Automotive Display
Refresh Rate:-
Touchscreen:Without
Max Ratings:Storage Temp.: -40 ~ 95 °C Operating Temp.: -40 ~ 85 °C
Outline (mm):306.52×156.39×1.029 (H×V×D)
Transmissivity:-
Glass Thickness:0.40+0.40 mm
