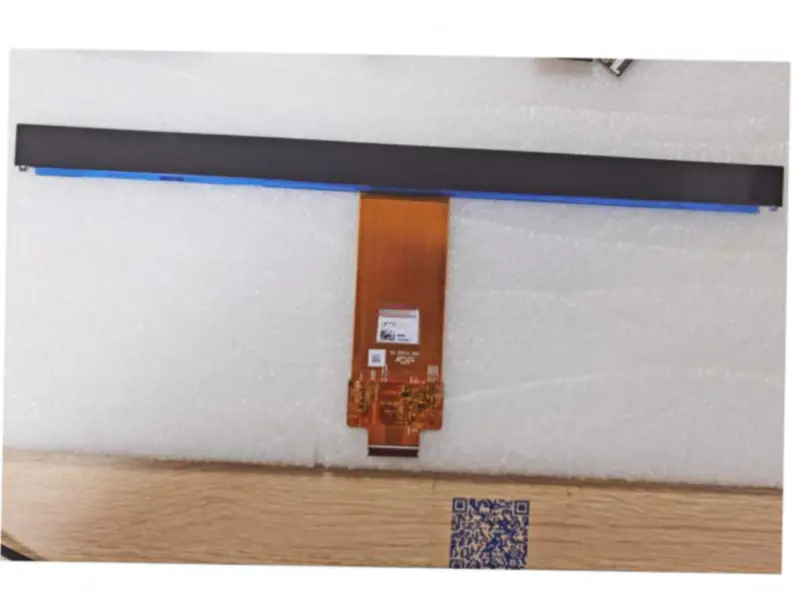

AUO C125UAN01.0 LCD

Specification

Model P/N:C125UAN01.0
Brand:AUO
Diagonal Size:12.5"
Resolution:2400(RGB)×900 205PPI
Contrast Ratio:1200:1 (Min.) (TM)
Viewing Angle:-
Panel Type:LTPS TFT-LCD, CELL , FOG
Pixel Format:RGB Vertical Stripe
Active Area:316.8(W)×11.88(H) mm
Bezel Opening:-
Outline Dim:324.8(H)×21.22(V) ×0.73(D) mm
Treatment:Hard coating
Luminance:0 cd/m²
View Direction:Symmetry
Response Time:20 (Max.)(Tr+Td)
Operating Mode:AHVA, Normally Black, Transmissive
Support Color:16.7M 88% DCI-P3
Light Source:No B/L
Weight:12.8g (Typ.)
Designed For:Stretched Bar LCD ，Automotive Display
Frame Rate:60Hz
Touch Panel:Without
Interface Type:LVDS (1 ch, 8-bit) + SPI , 40 pins FPC
Power Supply:3.3V (Typ.)
Plate Thickness:0.25+0.25 mm
Transmittance:4.45% (Typ.)(with Polarizer)
D-IC Detail:COG Built-in 1 source chips
