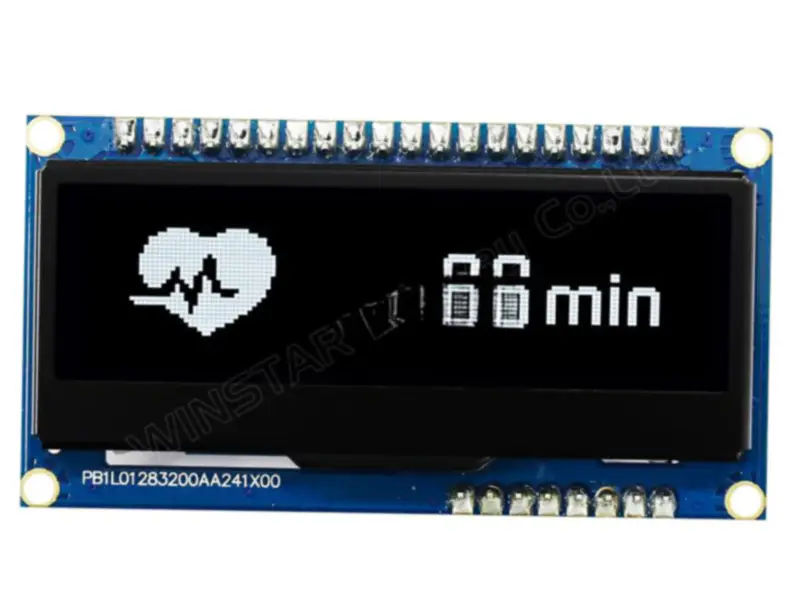

Winstar WEP012832A LCD

Specification

Model P/N:WEP012832A
Brand:Winstar
Diagonal Size:2.3"
Resolution:128×32 59PPI
Viewing Angle:80/80/80/80
Panel Type:PM-OLED, OLED
Pixel Format:Rectangle
Active Area:55.018(W)×13.098(H) mm
Bezel Opening:59(W)×17.1(H) mm
Response Time:-
Outline Size:66.5(W)×35(H) ×9(D) mm
Surface:-
Best View on:Symmetry
Display Colors:Mono(White)
Lamp Type:self
Frequency:-
Touch Screen:Without
Panel Weight:-
Application:Handheld & PDA ，Instruments & Meters ，Home Appliance ，Healthcare
Signal Interface:8-bit 6800/8080 parallel, 4-wire SPI, I²C , 28 pins Pad
Input Voltage:3.3V (Typ.)
Driver IC:COG Built-in SSD1305Z
