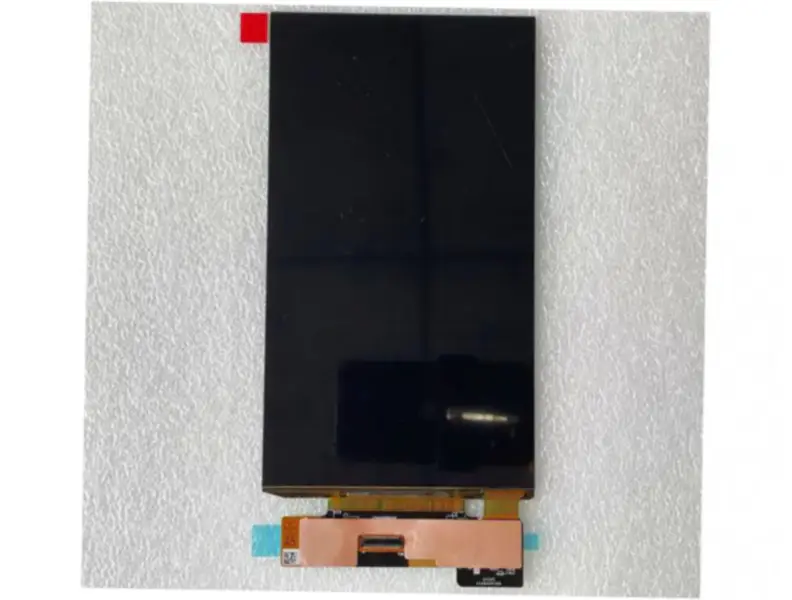

TIANMA TA070FFHM01-00 LCD

Specification

Model P/N:TA070FFHM01-00
Brand:TIANMA
Diagonal Size:7.0"
Resolution:1080(RGB)×1920, FHD 257PPI
Brightness:600 cd/m² (Typ.)
Contrast Ratio:100000:1 (Min.) (TM)
Viewing Angle:85/85/85/85 (Min.)(CR≥10)
Panel Type:AM-OLED, OLED , Full Module
Pixel Format:Sub-Pixel Rendering
Active Area:86.832(W)×154.368(H) mm
Bezel Opening:-
Response Time:-
Outline Size:88.832(W)×160.368(H) ×0.95(D) mm
Surface:-
Best View on:Symmetry
Display Colors:16.7M 100% DCI-P3
Lamp Type:self
Frequency:120Hz
Touch Screen:On-Cell Touch, I²C
Panel Weight:-
Application:Mobile Phone ，Gaming
Signal Interface:MIPI (4 data lanes) , 39 pins Connector
Input Voltage:1.8/4.0V (Typ.)(VDDIO/VBAT)
Driver IC:COG Built-in ICNA3520
