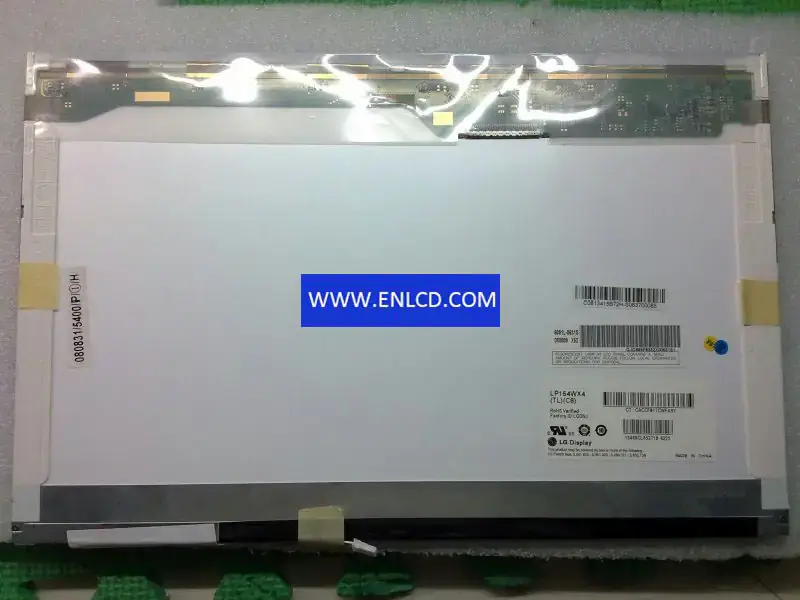

LP154WX4-TLC8 LG Display LCD panel replacement for Laptop

Panel Brand：LG.Philips LCD
Panel Model：LP154WX4-TLC8 (LPL0120) 27 Compatible
Panel Size：15.4 inch
Panel Type：a-Si TFT-LCD, LCM
Resolution：1280(RGB)×800 , WXGA
Pixel Format：RGB Vertical Stripe
Display Area：331.2(W)×207(H) mm
Bezel Opening：335.0(W)×210.7(H) mm
Outline Size：344(W)×222(H)×6.5(D) mm
Surface：Glare (Haze 0%)
Brightness：200 cd/m2 (Typ.)
Contrast Ratio：600:1 (Typ.) (TM)
Viewing Angle：45/45/15/35 (Typ.)(CR≥10)
Display Mode：TN, Normally White, Transmissive
Best View on：6 o’clock
Response Time：16 (Typ.)(Tr+Td)
Display Colors：262K 45%(CIE1931)
Lamp Type：1 pcsCCFL, 12K hours, Without Driver
Frequency：60Hz
Touch Screen：Without
Shape Style： Wedge (PCBA Bent, Depth ≥5.2mm)
Application： Laptop,
Signal Interface： LVDS (1 ch, 6-bit), 30 pins, Connector
Input Voltage：3.3V (Typ.)
Environment：Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C
