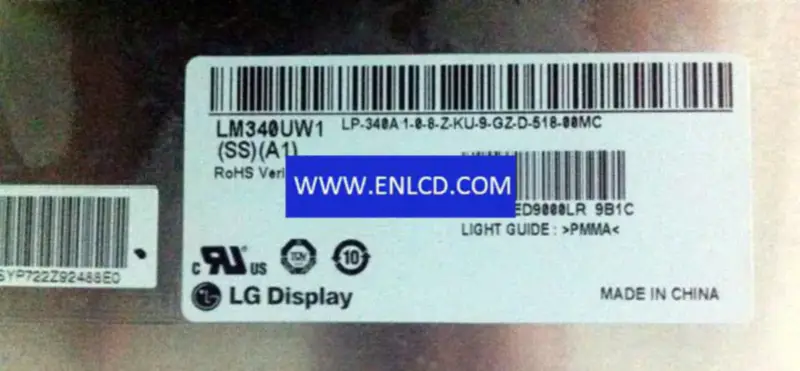

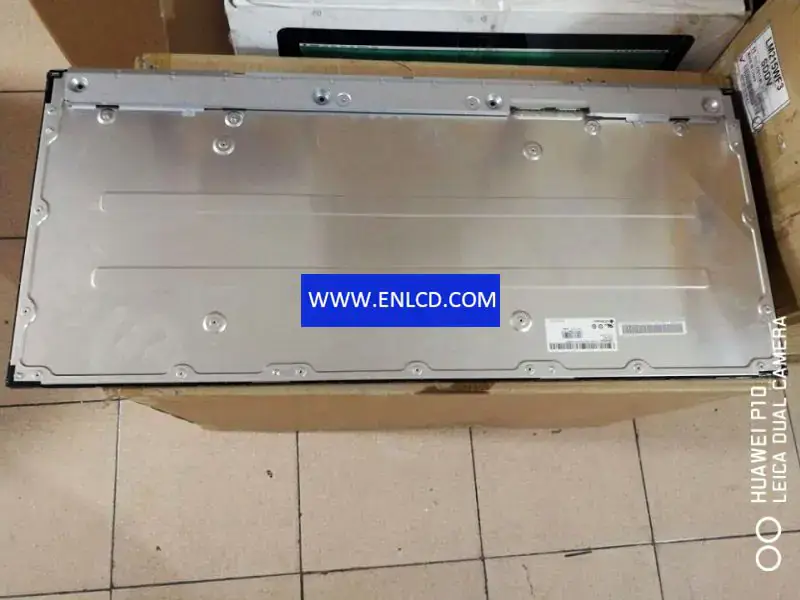

LM340UW1-SSA1 LG Display LCD panel replacement

Panel Brand：LG Display
Panel Size：34 inch
Resolution：3440(RGB)×1440
Display Area：799.8(W)×334.8(H) mm
Outline Size：820.8(W)×361(H)×19.8(D) mm
Brightness：320 cd/m2 (Typ.)
Viewing Angle：89/89/89/89 (Typ.)(CR≥10)
Best View on：Symmetry
Display Colors：1.07B100%(sRGB)
Frequency： 60Hz
Weight：3.71/3.90Kgs (Typ./Max.)
Panel Model：LM340UW1-SSA1
Panel Type：a-Si TFT-LCD , LCM
Pixel Format： RGB Vertical Stripe
Bezel Opening：-
Surface：Antiglare, Hard coating (3H)
Contrast Ratio：1000:1 (Typ.) (TM)
Display Mode： AH-IPS, Normally Black, Transmissive
Response Time：14 (Typ.)(G to G)
Lamp Type： 12S4P WLED , 30K hours , Without Driver
Touch Screen：Without
Application： Desktop Monitor, Industrial Application, Medical Imaging,
Signal Interface： LVDS (8 ch, 10-bit), 174 pins , Connector
Input Voltage： 10.0V (Typ.)
Environment： Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C
