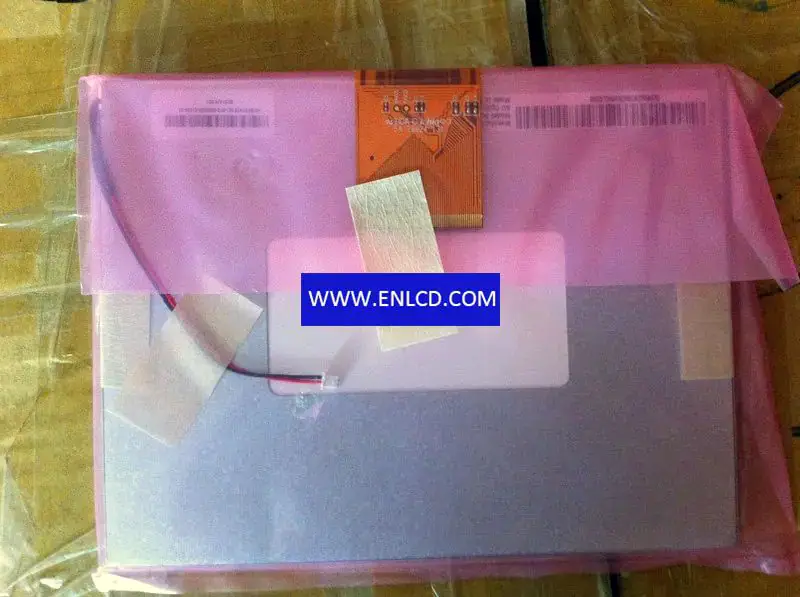

A070SN02 V0 AUO LCD panel replacement

Panel Brand：AUO
Panel Model：A070SN02 V0
Panel Size：7.0 inch
Panel Type：a-Si TFT-LCD, LCM
Resolution：800×600(RGB) , SVGA
Pixel Format：RGB Horizontal Stripe
Display Area：141.6(W)×106.2(H) mm
Bezel Opening：143.6(W)×108.2(H) mm
Outline Size：154(W)×119.2(H)×5.08(D) mm
Surface：Antiglare, Hard coating (3H)
Brightness：250 cd/m2 (Typ.)
Contrast Ratio：500:1 (Typ.) (TM)
Viewing Angle：70/70/50/60 (Typ.)(CR≥10)
Display Mode：TN, Normally White, Transmissive
Best View on：6 o’clock
Response Time：4/16 (Typ.)(Tr/Td)
Display Colors：16.2M 50%(CIE1931)
Lamp Type：3S6PWLED, 10K hours, Without Driver
Frequency：-
Touch Screen：Without
Panel Weight： –
Application： Digital Photo Frame, Portable DVD Player,
Signal Interface： TTL (1 ch, 8-bit) + SPI, 60 pins, FPC
Input Voltage：3.3/5/-5/14/-14V (Typ.)(VDD/VDPA/VDNA/VGH/VGL)
Environment：Operating Temp.: -10 ~ 60 °C ;Storage Temp.: -20 ~ 70 °C
