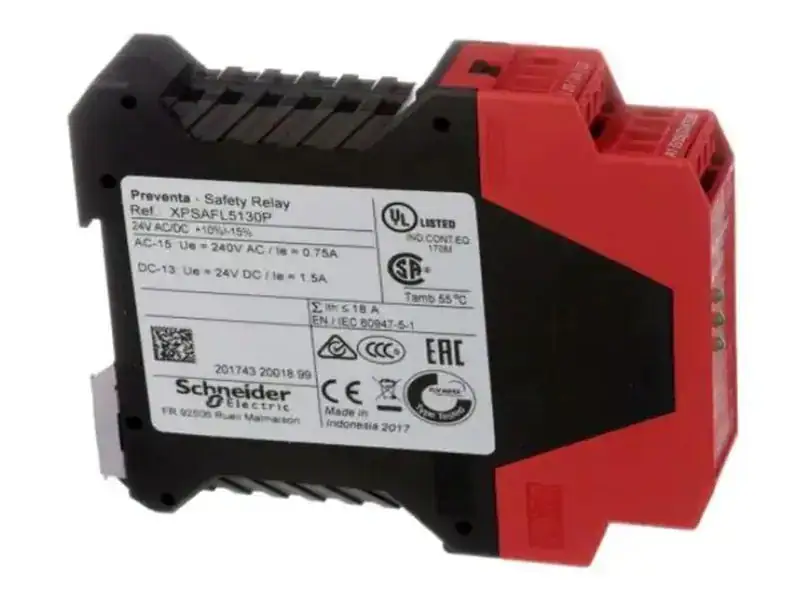

Name: Schneider XPSAFL5130 DAQ Card
SKU: ENLCD0002023
Price: 388 USD
Availability: InStock

Product area	Preventa security technology
Product or component type	Preventa safety relay / safety switching device
Name of the security module	XPSAF
Application of the security module	For monitoring emergency stops, position switches and safety light curtains
Function of the module	Monitoring of a non-contact protective device (ESPE/ESPE) Monitoring of a movable protective grille Monitoring of emergency stops with 2 NC in 2-channel wiring Emergency stop monitoring of 1-channel wiring Monitoring of several emergency stops in 2-channel wiring
Security level	Can achieve PL e/Category 4 conforms to ISO 13849-1 Can achieve SILCL 3 conforms to IEC 62061
Safety and reliability data	DC > 99% corresponds to ISO 13849-1 MTTFd = 172.1 years corresponds to ISO 13849-1 PFHd = 5.61E-9 1/h corresponds to IEC 62061
Type of start	Not monitored
Connections – terminals	Captive clamping screws, 1x 0.14-2.5 mm² flexible with wire end sleeve, with insulating collar for 2 wires Captive clamping screws, 1x 0.14-2.5 mm² rigid with wire end sleeve, with insulating collar for 2 wires Captive clamping screws, 1x 0.25- 1.5 mm² flexible with wire end sleeve, with insulating collar for 2 wires Captive clamping screws, 1 x 0.25 – 2.5 mm² flexible with wire end sleeve, with insulating collar for 2 wires Captive clamping screws, 2x 0.14-0.75 mm² flexible with wire end sleeve , with insulating collar for 2 wires Captive clamping screws, 2x 0.14 – 0.75 mm² rigid with wire end sleeve, with insulating collar for 2 wires Captive clamping screws, 2 x 0.25 – 1 mm² flexible with wire end sleeve, with insulating collar for 2 wires Captive clamping screws, 2 x 0.5 – 1.5 mm² flexible with wire end sleeve, with insulating collar for 2 wires
Output type	Instantaneous relays, 3 NO circuit(s), voltage free
Number of additional circuits	0
[UH,nom] Rated operating voltage	24V AC -15 – +10% 24V DC -15 – +10%

Additional features
Synchronization time between inputs	Unlimited
Supply frequency	50/60Hz
maximum power consumption in VA	5VA AC
Input protection type	Internal, electronic
Control circuit voltage	24V
Max. line resistance	90 ohms
breaking capacity	180VA hold AC-15 C300 relay output 1800VA inrush current AC-15 C300 relay output
breaking capacity	1.5A at 24V (DC-13) Time constant: 50ms for relay output
Thermal output current	6 A per relay for relay output
[Ith] Conventional thermal current in free air	18 A
Related coverage	4 A gG or gL for relay output corresponds to EN/IEC 60947-5-1, DIN VDE 0660 Part 200 6 A fast-acting fine fuse for relay output corresponds to EN/IEC 60947-5-1, DIN VDE 0660 Part 200
Min. output current	10 mA for relay output
Min. output voltage	17V for relay output
Max. response time when input is open	40 ms
[Ui] Rated insulation voltage	300 V (pollution degree 2) corresponds to IEC 60947-5-1 300 V (pollution degree 2) corresponds to DIN VDE 0110 Part 1
[Uimp] Rated impulse withstand voltage	4 kV overvoltage category III corresponds to IEC 60947-5-1 4 kV overvoltage category III corresponds to DIN VDE 0110 Part 1
Local signaling	3 LEDs
Current consumption	30 mA at 24 V AC with power supply on
Mounting bracket	35mm symmetrical DIN rail
Product weight	0.25kg
