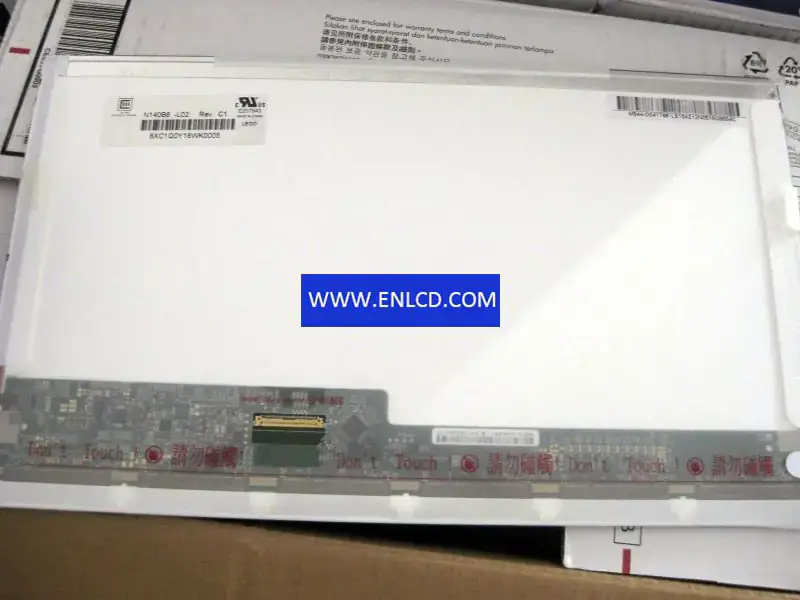

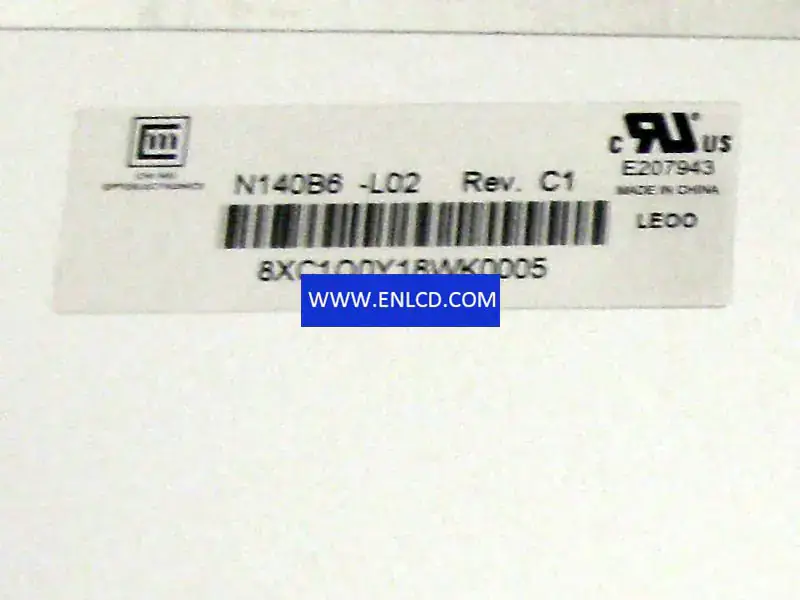

N140B6-L02 Innolux LCD panel replacement for Laptop

$15.00

N140BGE-E43 B140XTN03.3 N140BGE-E33 N140BGE-EB3 N140BGE-EA3 N140BGE-EA2 LP140WHU TP A1 LP140WH2 TP S1 LTN140AT31 LCD Panel

$43.00

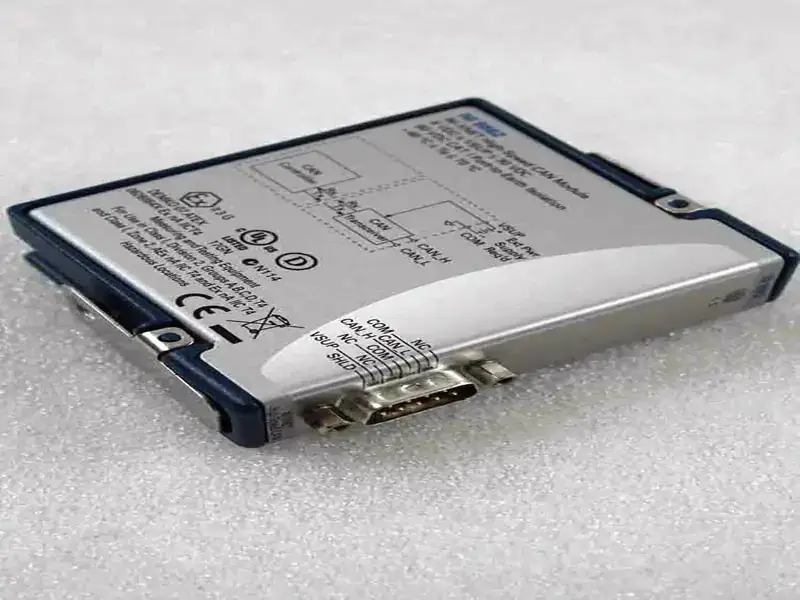

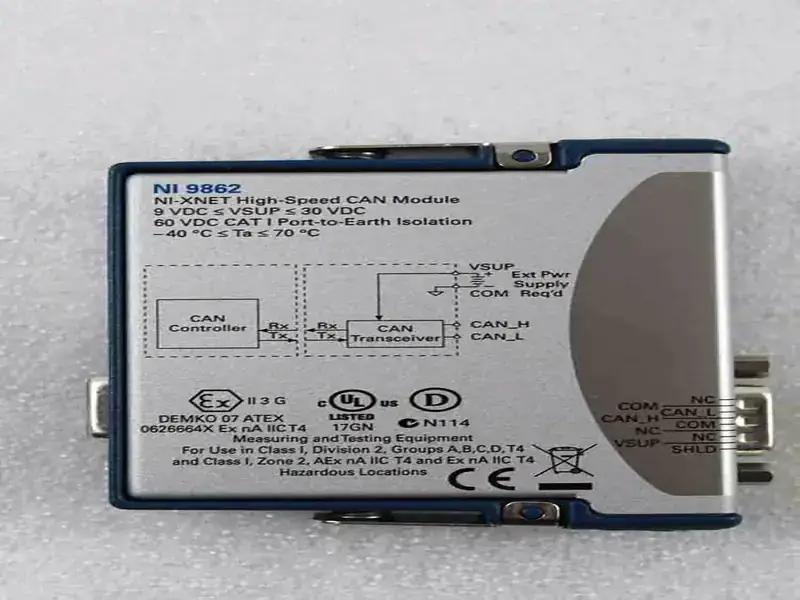

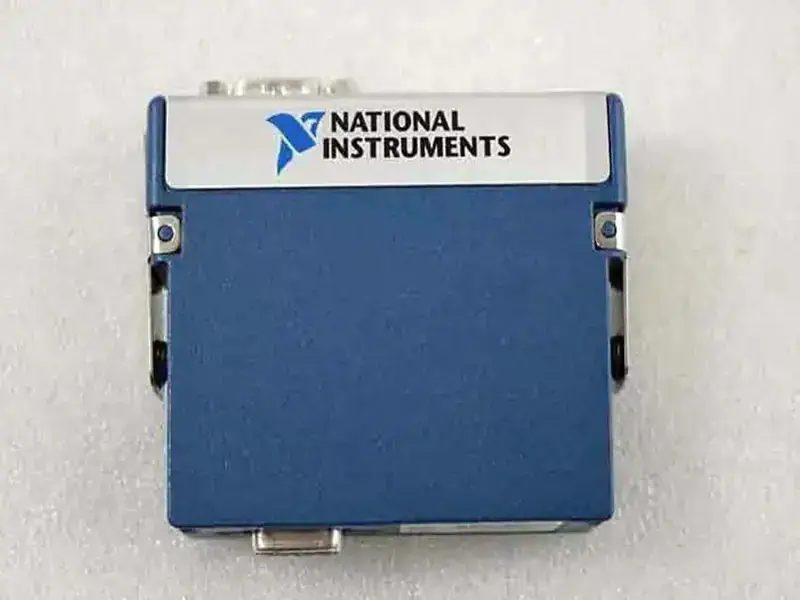

NI NI-9862 DAQ Card

Stock:

SKU:{{ product.sku }}

Model: {{ product.model }}

weight: {{ product.weight }} Kilogram

{{ variable.name }} : {{ variable.values[selectedVariantsIndex[variable_index]].name }}

Quantity:

Product Details

High-Speed CAN Characteristics

Transceiver	NXP TJA1041AT
Max baud rate	1 Mbps
CAN_H, CAN_L bus lines voltage	-27 to +40 VDC
CAN Supply voltage range (V_SUP)	+9 to +30 VDC
MTBF	Contact NI for Bellcore MTBF or MIL-HDBK-217F specifications.

Power consumption from chassis	1 W maximum (active mode)
Thermal dissipation (at 70 °C)	1.25 W maximum (active mode)

Connect only voltages that are within the following limits:

Maximum voltage
Port-to-COM	-27 V DC to +40 V DC maximum, Measurement Category I

External power supply (Vsup)

+9 V DC to +30 V DC

Isolation

Port-to-earth ground
Continuous	60 V DC, Measurement Category I
Withstand	500 V RMS, verified by a 5 s dielectric withstand test
