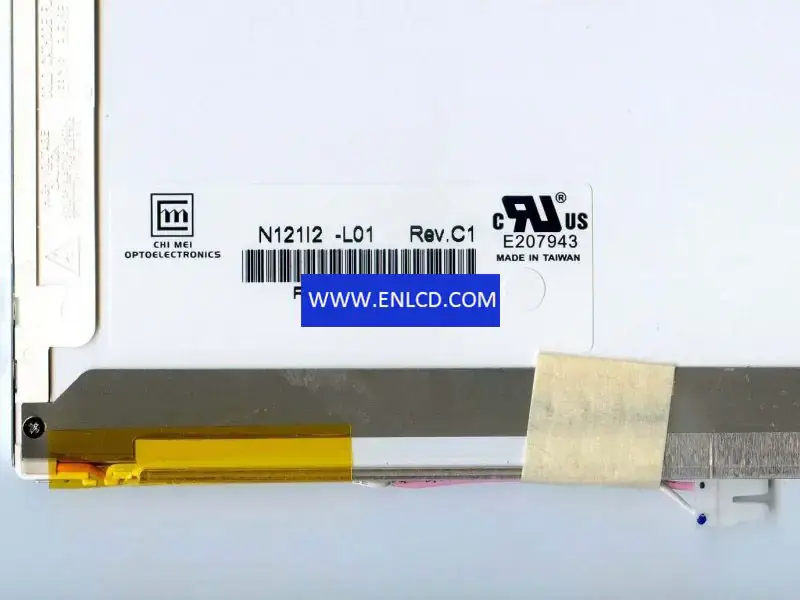

N121I2-L01 Innolux LCD panel replacement

Manufacturer：CMO
Model Name：N121I2-L01 (CMO1203) 2 Compatible
Screen Size：12.1 inch
Screen Type：LCM ,a-Si TFT-LCD
Pixel Number：1280(RGB)×800 (WXGA)
Arrangement：RGB Vertical Stripe
Active Area(mm)： 261.12 × 163.2 (H×V)
Outline(mm)：275.8 × 178× 5.5 (H×V×D)
Bezel Area(mm)： 264.12 × 166.20 (H×V)
Treatment： Glare (Haze 0%), Hard coating (2H)
Luminance：200 cd/m2 (Typ.)
Contrast Ratio：500 : 1 (Typ.) (TM)
Viewing Angle： 60/60/40/50 (Typ.)(CR≥10)
Response： 5/11 (Typ.)(Tr/Td) ms
Good View at： 6 o’clock
Work Mode： TN, Normally White, Transmissive
Color Depth：262K
Backlight：1 pcsCCFL, 10K hours, No Driver
Outline Shape： Wedge (PCBA Bent, Depth ≥5.2mm)
Used for： Laptop,
Refresh Rate：60Hz
Touchscreen：Without
Signal Type：LVDS (1 ch, 6-bit), Connector, 20 pins
Voltage Supply：3.3V (Typ.)
Max. Ratings：Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
