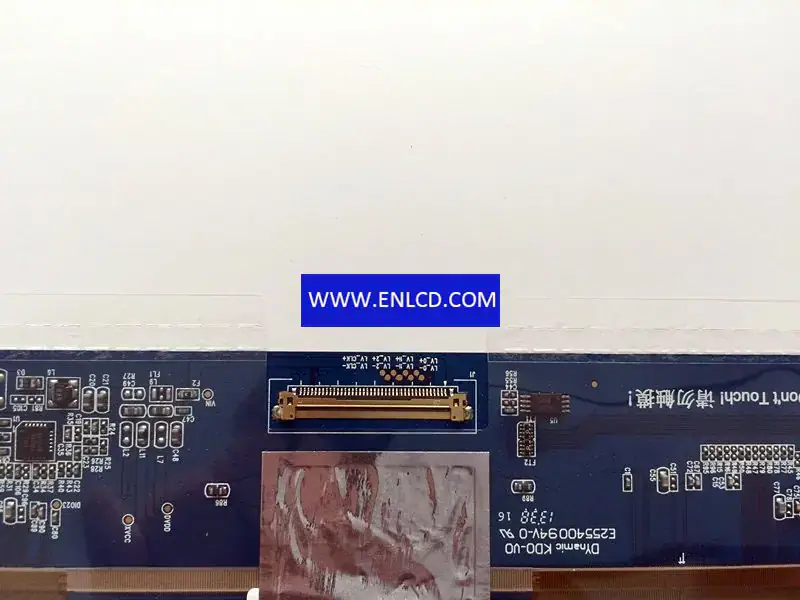

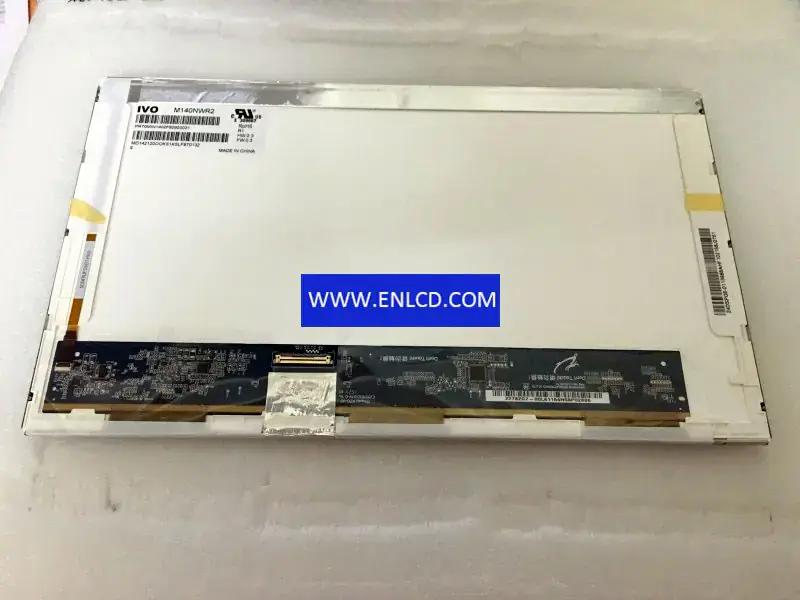

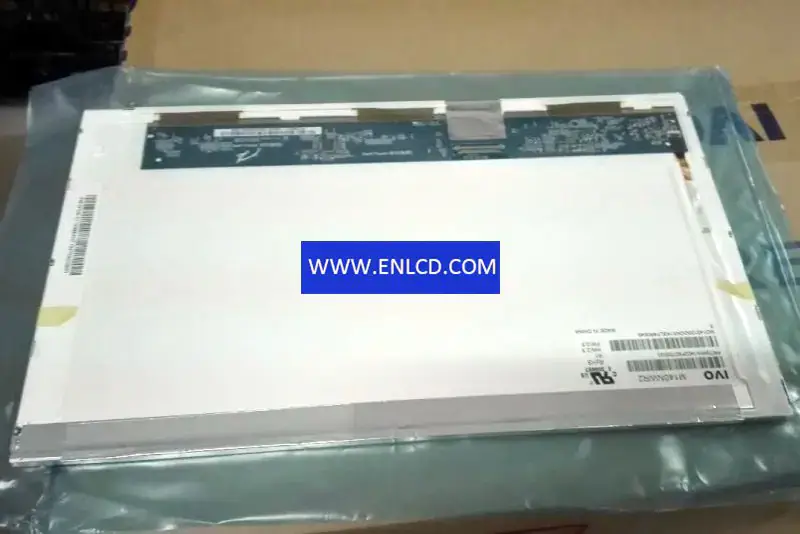

M140NWR2 R1 IVO LCD panel replacement for Laptop

Panel Brand：IVO
Panel Model：M140NWR2 R1 (IVO057A) 1 Compatible
Panel Size：14.0 inch
Panel Type：a-Si TFT-LCD, LCM
Resolution：1366(RGB)×768 , WXGA
Pixel Format：RGB Vertical Stripe
Display Area：309.399(W)×173.952(H) mm
Bezel Opening：312.40(W)×176.95(H) mm
Outline Size：323.5(W)×192(H)×5.2(D) mm
Surface：Glare (Haze 0%), Hard coating
Brightness：200 cd/m2 (Typ.)
Contrast Ratio：500:1 (Typ.) (TM)
Viewing Angle：45/45/15/35 (Typ.)(CR≥10)
Display Mode：TN, Normally White, Transmissive
Best View on：6 o'clock
Response Time：8 (Typ.)(Tr+Td)
Display Colors：262K 45%(CIE1931)
Lamp Type：WLED, 12K hours, With LED Driver
Frequency： 60Hz
Touch Screen：Without
Shape Style： Wedge (PCBA Bent, Depth ≥5.2mm)
Application： Laptop,
Signal Interface： LVDS (1 ch, 6-bit), 40 pins , Connector
Input Voltage：3.3V (Typ.)
Environment： Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C：：
