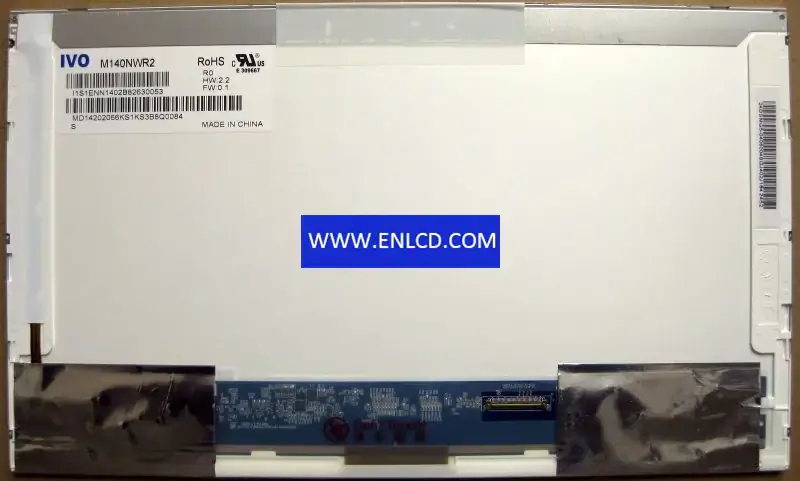

M140NWR2 R0 IVO LCD panel replacement for Laptop

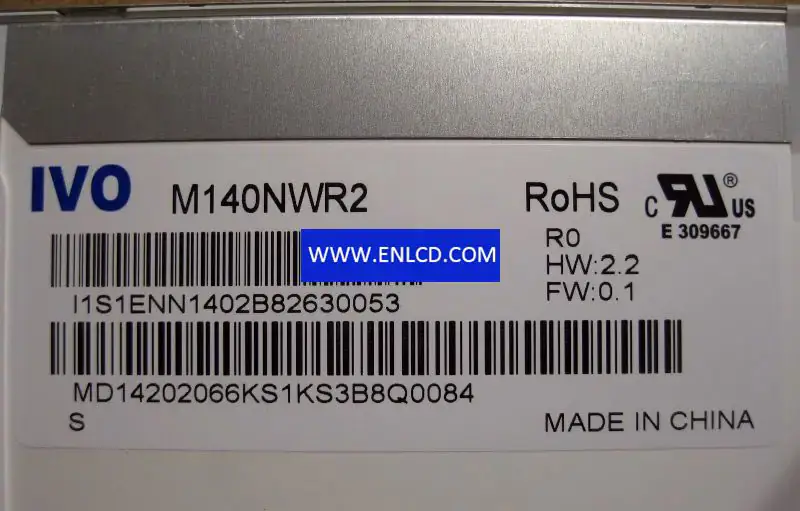

Brand：IVO
Model：M140NWR2 R0 (IVO057A) 1 Compatible
Diagonal Size：14.0 inch
Type：a-Si TFT-LCD ， LCM
Pixel Format：1366(RGB)×768[WXGA]
Configuration：RGB Vertical Stripe
Active Area：309.399(H)×173.952(V) mm
Outline Dim.：323.5(H)×192(V)×5.2(D) mm
Bezel Area：312.40(H)×176.95(V) mm
Treatment：Glare (Haze 0%)， Hard coating
Luminance：200 cd/m2 (Typ.)
Contrast Ratio：500:1 (Typ.) (TM)
View Direction：6 o'clock
Response Time：8 (Typ.)(Tr+Td)
Viewing Angle：45/45/15/35 (Typ.)(CR≥10)
Operating Mode：TN， Normally White， Transmissive
Support Color：262K 49%(CIE1931)
Light Source：WLED， 10K hours， With LED Driver
Form Style： Wedge (PCBA Bent， Depth ≥5.2mm)
Designed For： Laptop,
Frame Rate：60Hz
Touch Panel：Without

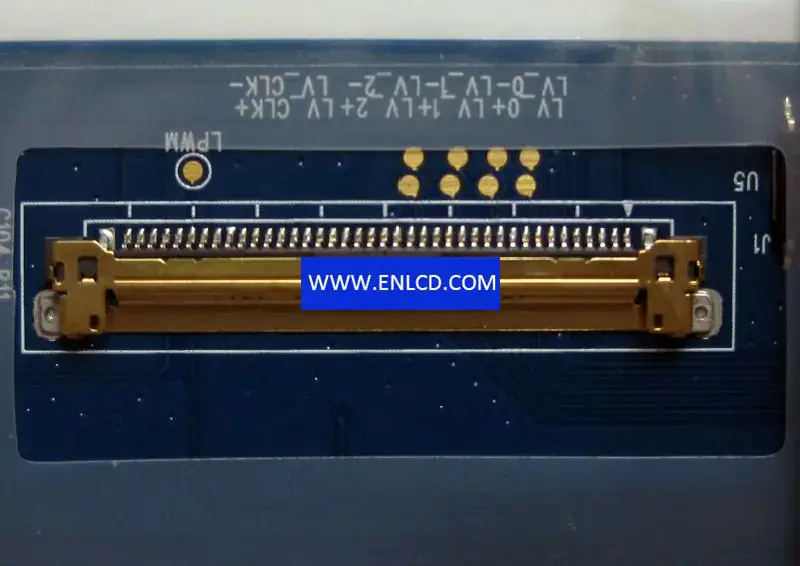

Interface Type： 40 pinsLVDS (1 ch， 6-bit)， Connector
Power Supply：3.3V (Typ.)
Environment： Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
