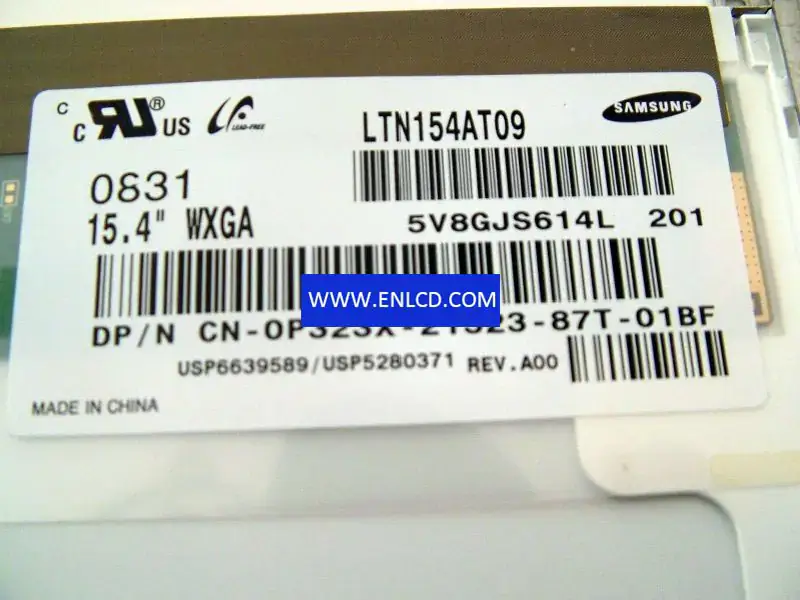

Samsung LTN154AT09-201 LCD

Specification

Model P/N:LTN154AT09-201
Brand:Samsung
Diagonal Size:15.4"
Resolution:1280(RGB)×800, WXGA 98PPI
Viewing Angle:-
Panel Type:a-Si TFT-LCD, LCM
Pixel Format:RGB Vertical Stripe
Active Area:331.2(W)×207(H) mm
Bezel Opening:-
Response Time:-
Best View on:-
Display Colors:262K
Lamp Type:1 pcs CCFL
Frequency:60Hz
Touch Screen:Without
Application:Laptop
Signal Interface:LVDS (1 ch, 6-bit)
Input Voltage:3.3V (Typ.)
Shape Style:Wedge (PCBA Bent, T≥5.2mm)
