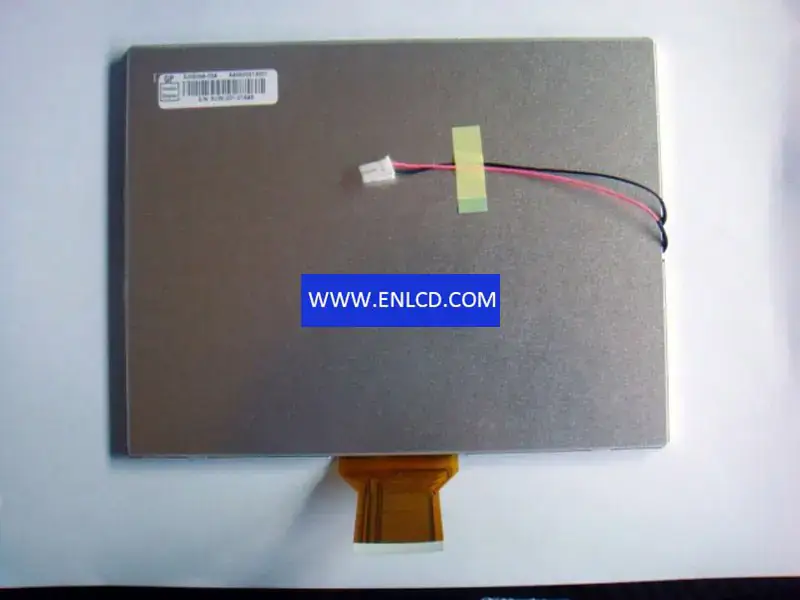

EJ080NA-05A Innolux LCD panel replacement

Brand：Chimei Innolux
Model：EJ080NA-05A2 Compatible
Diagonal Size：8.0 inch
Type：a-Si TFT-LCD, LCM
Pixel Format：800(RGB)×600[SVGA]
Configuration： RGB Vertical Stripe
Active Area：162(H)×121.5(V) mm
Outline Dim.：183(H)×141(V)×5.9(D) mm
Bezel Area：164.8(H)×124.3(V) mm
Treatment：Antiglare
Luminance：250 cd/m2 (Typ.)
Contrast Ratio： 500:1 (Typ.) (TM)
View Direction：6 o’clock
Response Time：10/15 (Typ.)(Tr/Td)
Viewing Angle：70/70/50/70 (Typ.)(CR≥10)
Operating Mode：TN, Normally White, Transmissive
Support Color：262K/16.7M
Light Source：WLED[3S9P], 20K hours, W/O Driver
Weight： 243g (Typ.)
Designed For： Digital Photo Frame,
Frame Rate：60Hz
Touch Panel：Without
Interface Type： 50 pinsParallel RGB (1 ch, 8-bit), FPC
Power Supply：3.3/10.4/16.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL)
Environment： Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C
