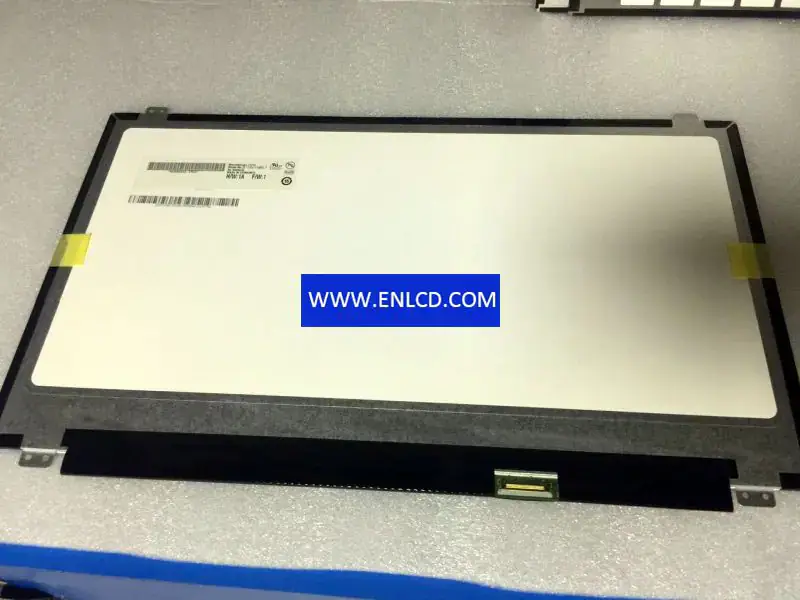

B156HTN05.1 AUO LCD panel replacement for Laptop

{{ product.price_format }}
{{ product.origin_price_format }}
Stock:
SKU:{{ product.sku }}
Model: {{ product.model }}
weight: {{ product.weight }} Kilogram

{{ variable.name }} : {{ variable.values[selectedVariantsIndex[variable_index]].name }}

{{ value.name }}

Condition:

Quantity:

Panel Brand:AUO
Panel Size:15.6 inch
Resolution:1920(RGB)×1080 , FHD
Display Area:344.16(W)×193.59(H) mm
Outline Size:359.5(W)×223.8(H)×3.2(D) mm
Brightness:400 cd/m2 (Typ.)
Viewing Angle:70/70/60/60 (Typ.)(CR≥10)
Best View on:6 o'clock
Display Colors:262K72%(CIE1931)
Frequency: 120Hz
Shape Style:-
Panel Model:B156HTN05.1 (AUO51ED)
Panel Type:a-Si TFT-LCD , LCM
Pixel Format: RGB Vertical Stripe
Bezel Opening:-
Surface:Antiglare
Contrast Ratio:700:1 (Typ.) (TM)
Display Mode: TN, Normally White, Transmissive
Response Time:5 (Typ.)(Tr+Td)
Lamp Type:WLED , 16K hours , With LED Driver
Touch Screen:Without
Application: Laptop,
Signal Interface: eDP (2 Lanes), 30 pins , Connector
Input Voltage: 3.3V (Typ.)
Environment: Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C
