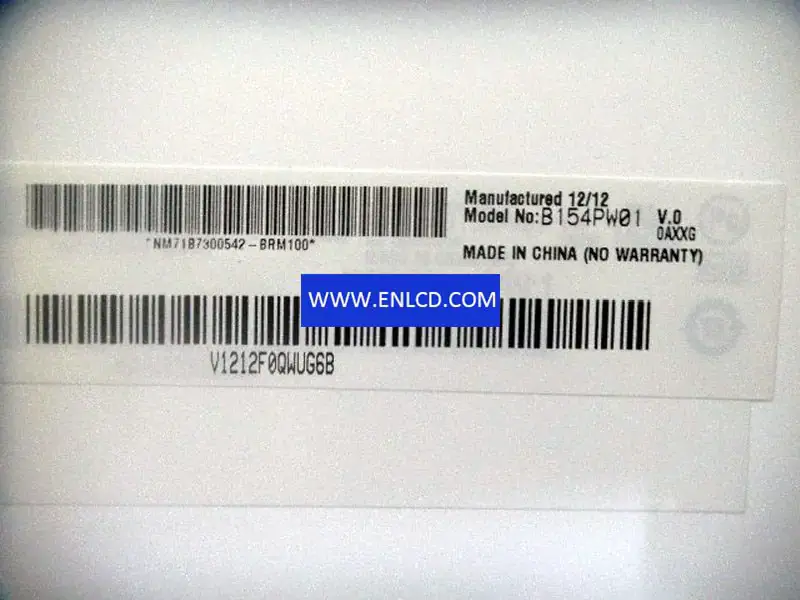

B154PW01 V0 AUO LCD panel replacement for Touch Panel

Brand：AUO
Model：B154PW01 V0 (APP9C60) 5 Compatible
Diagonal Size：15.4 inch
Type：a-Si TFT-LCD, LCM
Pixel Format：1440(RGB)×900[WXGA+]
Configuration：RGB Vertical Stripe
Active Area：331.56(H)×207.225(V) mm
Outline Dim.：344(H)×222(V)×6.2(D) mm
Bezel Area：335.4(H)×211.1(V) mm
Treatment：Glare (Haze 0%), Hard coating (3H), Reflection 1.5% (Typ.)
Luminance：300 cd/m2 (Typ.)
Contrast Ratio：400:1 (Typ.) (TM)
View Direction：-
Response Time：4/12 (Typ.)(Tr/Td)
Viewing Angle：70/70/60/60 (Typ.)(CR≥10)
Operating Mode：TN, Normally White, Transmissive
Support Color：262K
Light Source：CCFL[1 pcs], W/O Driver
Form Style： Wedge (PCBA Bent, Depth ≥5.2mm)
Designed For： Laptop,
Frame Rate：60Hz
Touch Panel：Without
Interface Type： 30 pinsLVDS (2 ch, 6-bit), Connector
Power Supply：3.3V (Typ.)
Environment： Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
