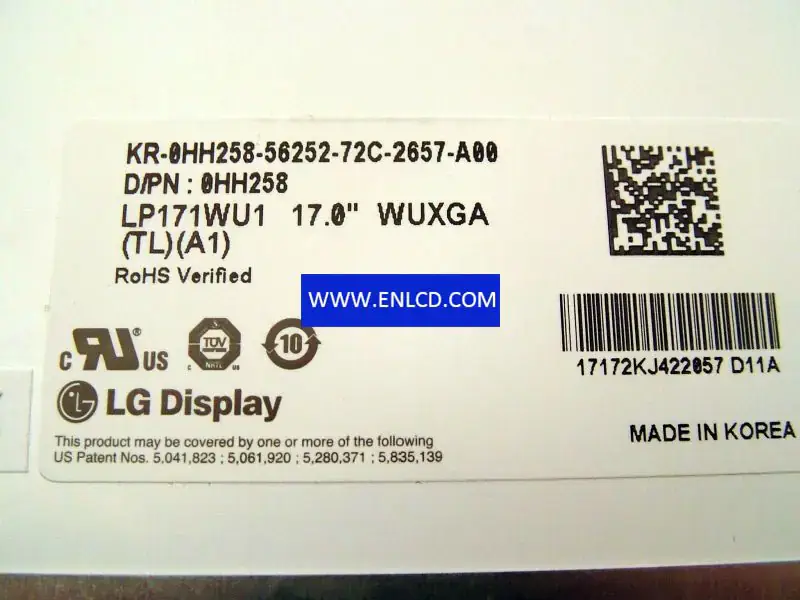

LP171WU1-TLA1 LG Display LCD panel replacement

Manufacturer：LG.Philips LCD
Screen Size： 17.1 inch
Pixel Number： 1920(RGB)×1200(WUXGA)
Active Area(mm)：367.2 × 229.5 (H×V)
Bezel Area(mm)：370.6 × 232.9 (H×V)
Luminance：260 (Typ.)(cd/m2)
Viewing Angle：70/70/60/60 (Typ.)(CR≥10)
Good View at：-
Color Depth：262K 50% (CIE1931)
Outline Shape： Wedge (PCBA Bent, Depth ≥5.2mm)
Refresh Rate：60Hz
Model Name：LP171WU1-TLA1 (LPL0000) 1 Compatible
Screen Type：LCM ,a-Si TFT-LCD
Arrangement：RGB Vertical Stripe
Outline(mm)： 382.2 × 267.2 × 6.6 (H×V×D)
Treatment：Glare (Haze 0%), Hard coating (2H)
Contrast Ratio： 700 : 1 (Typ.) (TM)
Work Mode： TN, Normally White, Transmissive
Response：16 (Typ.)(Tr+Td) ms
Backlight：1 pcs CCFL , 15K hours , No Driver
Used for： Laptop,
Touchscreen：Without
Signal Type：LVDS (2 ch, 6-bit), Connector, 30 pins
Voltage Supply： 3.3V (Typ.)
Max. Ratings： Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
