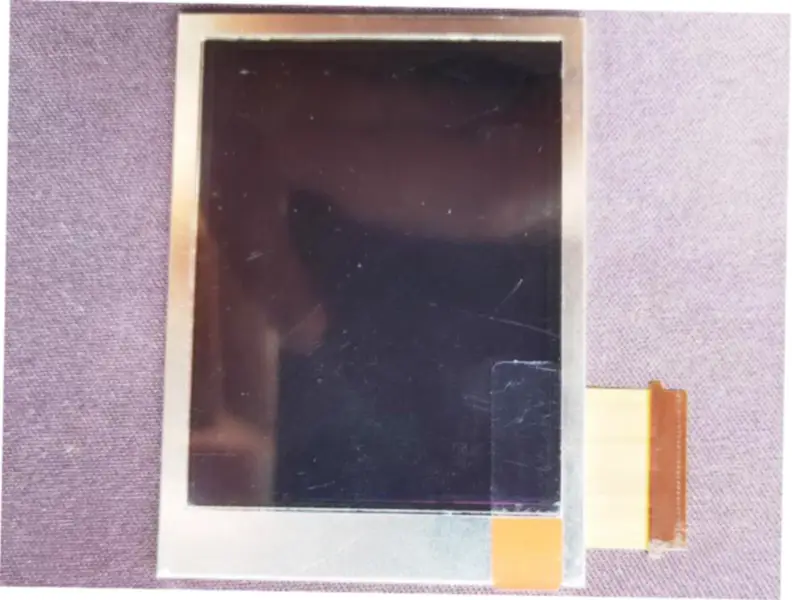

Samsung AMS260DN01 LCD

Specification

Model P/N:AMS260DN01
Brand:Samsung
Diagonal Size:2.6"
Resolution:240(RGB)×320, QVGA 151PPI
Viewing Angle:-
Panel Type:AM-OLED, OLED , Full Module
Pixel Format:RGB Vertical Stripe
Active Area:40.32(W)×53.76(H) mm
Bezel Opening:43.2(W)×56.85(H) mm
Outline Dim:49.1(H)×67.3(V) ×2.3(D) mm
Treatment:-
View Direction:-
Response Time:-
Operating Mode:-
Support Color:262K
Light Source:self
Weight:11.0g (Typ.)
Designed For:Mobile Phone
Frame Rate:-
Touch Panel:Without
Interface Type:8-bit parallel , 61 pins FPC
Power Supply:1.8/2.8V (Typ.)(VDD3/VCI)
D-IC Detail:COG Built-in S6E63F0
