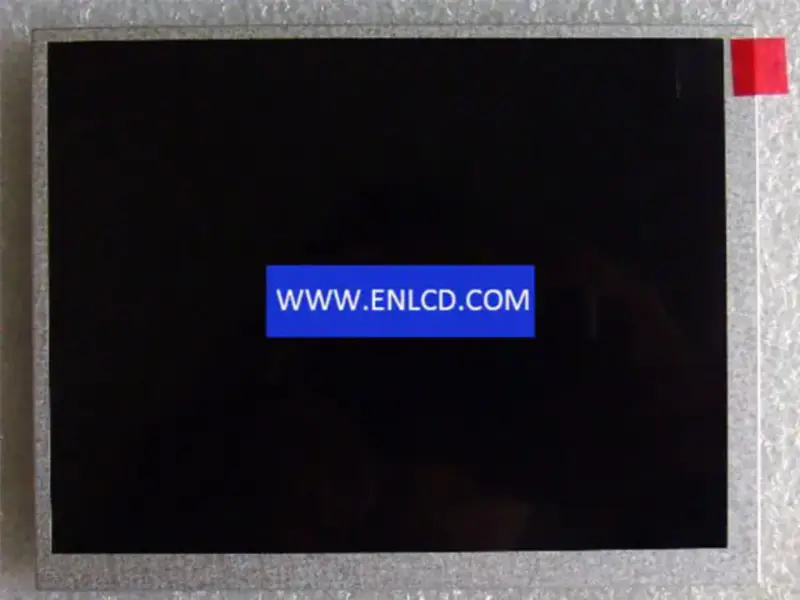

AMPIRE AM-640480G2TNQW-00H-F LCD

Specification

Model P/N:AM-640480G2TNQW-00H-F
Brand:AMPIRE
Diagonal Size:5.7"
Resolution:640(RGB)×480, VGA 141PPI
Contrast Ratio:250 : 1 (Typ.) (TM)
Viewing Angle:70/70/50/50 (Typ.)(CR≥10)
Color Depth:262K 50% NTSC
Backlight:WLED , 20K hours , With LED Driver
Signal Type:Parallel RGB (1 ch, 6-bit) , Connector 40 pins
Panel Type:a-Si TFT-LCD, LCM
Pixel Format:RGB Vertical Stripe
Active Area:115.2(W)×86.4(H) mm
Bezel Opening:118.0(W)×89.2(H) mm
Treatment:Antiglare, Hard coating (3H)
Luminance:500 cd/m² (Typ.)
Response:50 (Typ.)(Tr+Td) ms
Good View at:12 o'clock
Work Mode:TN, Normally White, Transmissive
Mass:-
Used for:Industrial
Refresh Rate:60Hz
Touchscreen:Without
Voltage Supply:3.3V (Typ.)
Max Ratings:Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C
Outline (mm):127×98.43×6.9 (H×V×D)
