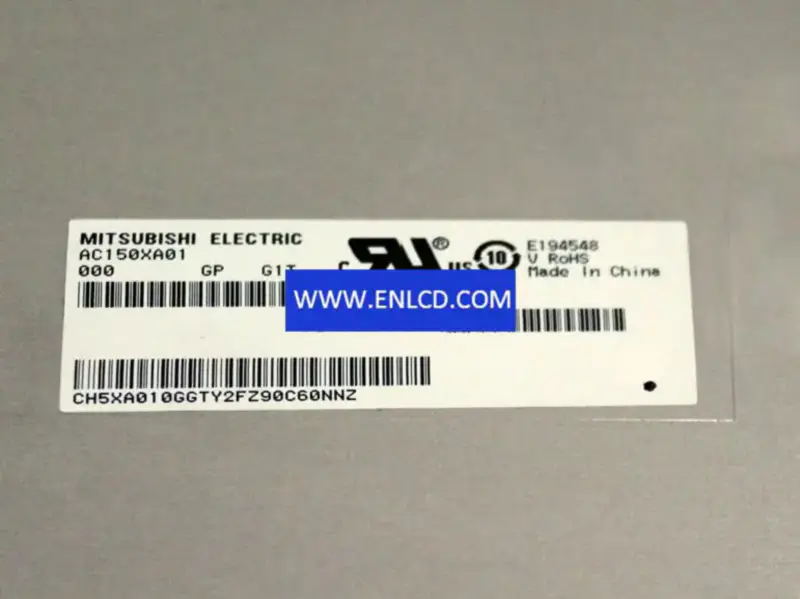

AC150XA01 Mitsubishi LCD panel replacement for Industrial Application

Brand：Mitsubishi
Model：AC150XA01
Diagonal Size：15.0 inch
Type：a-Si TFT-LCD , LCM
Pixel Format：1024(RGB)×768[XGA]
Configuration：RGB Vertical Stripe
Active Area：304.128(H)×228.096(V) mm
Outline Dim.：326.5(H)×253.5(V) mm
Bezel Area：307.4(H)×231.3(V) mm
Treatment：Antiglare, Hard coating (3H)
Luminance：450 cd/m2 (Typ.)
Contrast Ratio：700:1 (Typ.) (TM)
View Direction：6 o'clock
Response Time：2/10 (Typ.)(Tr/Td)
Viewing Angle：80/80/70/70 (Typ.)(CR≥10)
Operating Mode：TN, Normally White, Transmissive
Support Color：262K/16.7M
Light Source：WLED, 100K hours, With LED Driver
Weight： 1.05Kgs (Typ.)
Designed For： Industrial Application,
Frame Rate：60Hz
Touch Panel：Without
Interface Type： 20 pinsLVDS (1 ch, 6/8-bit), Connector
Power Supply：3.3V (Typ.)
Environment： Operating Temperature: 0 ~ 65 °C ; Storage Temperature: -20 ~ 65 °C
