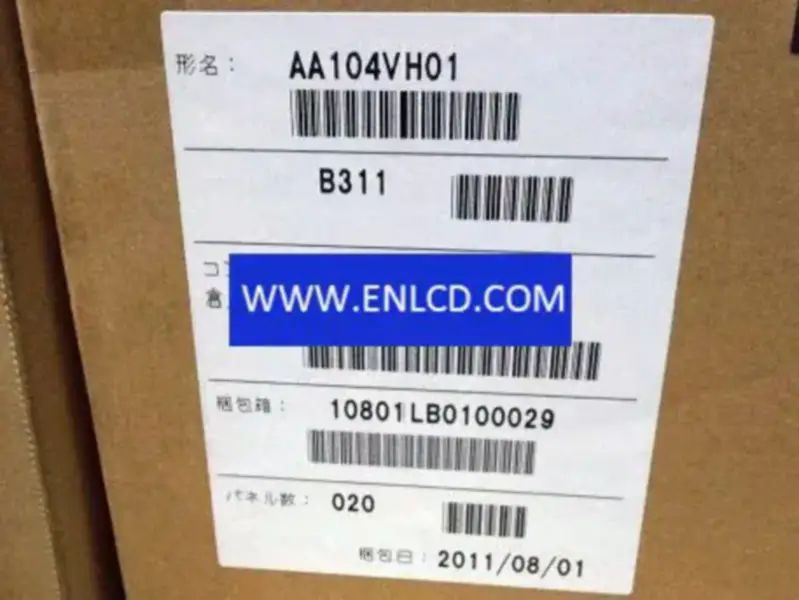

AA104VH01 Mitsubishi LCD panel replacement for Industrial Application

Brand：Mitsubishi
Model：AA104VH011 Compatible
Diagonal Size：10.4 inch
Type：a-Si TFT-LCD, LCM
Pixel Format：640(RGB)×480[VGA]
Configuration：RGB Vertical Stripe
Active Area：211.2(H)×158.4(V) mm
Outline Dim.：241(H)×180.2(V)×11(D) mm
Bezel Area：215.4(H)×161.8(V) mm
Treatment：Antiglare, Hard coating (3H)
Luminance：800 cd/m2 (Typ.)
Contrast Ratio：700:1 (Typ.) (TM)
View Direction：6 o'clock
Response Time：4/12 (Typ.)(Tr/Td)
Viewing Angle：70/70/65/65 (Typ.)(CR≥10)
Operating Mode：TN, Normally White, Transmissive
Support Color：262K 40%(CIE1931)
Light Source：WLED[2 strings], 60K hours, W/O Driver
Weight： 520g
Designed For： Industrial Application,
Frame Rate：60Hz
Touch Panel：Without
Interface Type： 31 pinsCMOS (1 ch, 6-bit), Connector
Power Supply：3.3V (Typ.)(VCC)
Environment： Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -20 ~ 80 °C
