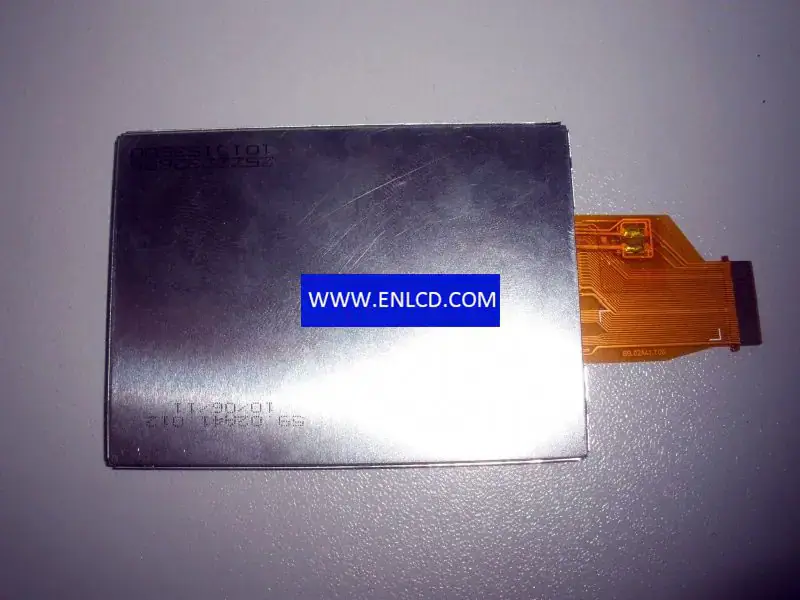

A027DN03 V1 AUO LCD panel replacement

Panel Brand：AUO
Panel Model：A027DN03 V1
Panel Size：2.7 inch
Panel Type：a-Si TFT-LCD, LCM
Resolution：320(RGB)×240 , QVGA
Pixel Format：RGB Delta
Display Area：54(W)×40.5(H) mm
Bezel Opening：56.4(W)×42.9(H) mm
Outline Size：63.5(W)×46.6(H)×2.4(D) mm
Surface：Glare (Haze 0%)
Brightness：350 cd/m2 (Typ.)
Contrast Ratio：300:1 (Typ.) (TM)
Viewing Angle：60/60/50/60 (Typ.)(CR≥10)
Display Mode：TN, Normally White, Transmissive
Best View on：-
Response Time：10/25 (Typ.)(Tr/Td)
Display Colors：16.7M
Lamp Type：2S1PWLED, Without Driver
Frequency：60Hz
Touch Screen：Without
Panel Weight： 13.7g
Application： Digital Still Camera, Digital Video Camera,
Signal Interface： Serial RGB (8-bit) + SPI, CCIR601/656, 39 pins, FPC
Input Voltage：3.3/13/-10V (VDD/VGH/VGL)
Environment：Operating Temp.: 0 ~ 60 °C ;Storage Temp.: -25 ~ 80 °C
