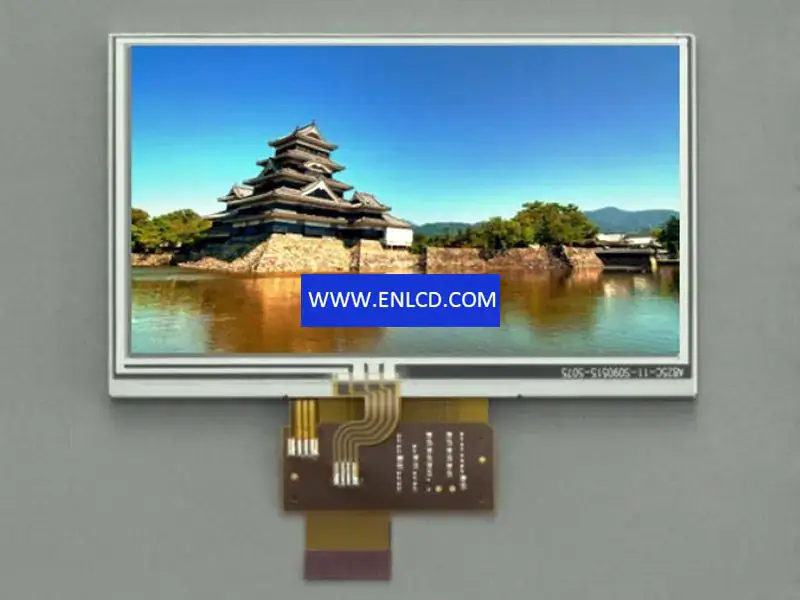

43WQW4T SII LCD panel replacement

Manufacturer：SII
Screen Size： 4.3 inch
Pixel Number： 480(RGB)×272(WQVGA)
Active Area(mm)：95.04 × 53.856 (H×V)
Bezel Area(mm)：-
Luminance：300 (Typ.)(cd/m2)
Viewing Angle：70/70/50/65 (Typ.)(CR≥10)
Good View at：6 o’clock
Color Depth：16.2M 50% (CIE1931)
Mass： 62.0g (Typ.)
Refresh Rate：-
Model Name：43WQW4T
Screen Type：LCM ,a-Si TFT-LCD
Arrangement：RGB Vertical Stripe
Outline(mm)： 105.5 × 67.2(H×V×D)
Treatment：Clear, Hard coating
Contrast Ratio： 400 : 1 (Typ.) (TM)
Work Mode： TN, Normally White, Transmissive
Response：15/35 (Typ.)(Tr/Td) ms
Backlight：4S2P WLED
Used for： Portable Navigation, Pocket TV, MP4 PMP,
Touchscreen：Embeded (4-wire Resistive, F/G)
Signal Type：Parallel RGB (1 ch, 8-bit) + SPI, FPC, 51 pins
Max. Ratings： Storage Temp.: -30 ~ 70 °C Operating Temp.: -20 ~ 60 °C
