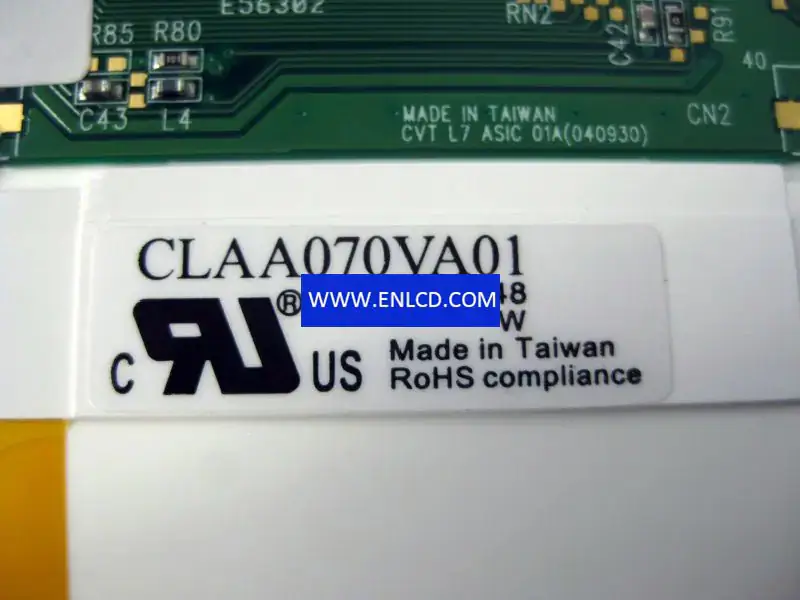

CLAA070VA01 CPT LCD panel replacement

Brand：CPT
Model：CLAA070VA01
Diagonal Size：7.0 inch
Type：a-Si TFT-LCD ， LCM
Pixel Format：800(RGB)×480[WVGA]
Configuration：RGB Vertical Stripe
Active Area：152.4(H)×91.44(V) mm
Outline Dim.：165(H)×104(V) mm
Bezel Area：155.3(H)×94.30(V) mm
Treatment：Antiglare， Hard coating (3H)
Luminance：220 cd/m2 (Typ.)
Contrast Ratio：400:1 (Typ.) (TM)
View Direction：6 o'clock
Response Time：12/18 (Typ.)(Tr/Td)
Viewing Angle：70/70/40/60 (Typ.)(CR≥10)
Operating Mode：TN， Normally White， Transmissive
Support Color：262K 50%(CIE1931)
Light Source：CCFL[1 pcs]， 20K hours， W/O Driver
Weight： 140g (Typ.)
Designed For： MP4 PMP, Digital Photo Frame, Portable DVD Player,
Frame Rate：60Hz
Touch Panel：Without
Interface Type： 40 pinsTTL (1 ch， 6-bit)， Connector
Power Supply：3.3V (Typ.)(VCC)
Environment： Operating Temperature: 0 ~ 60 °C ; Storage Temperature: -30 ~ 70 °C ; Vibration Level: 2.9G (28.4 m/s2)
