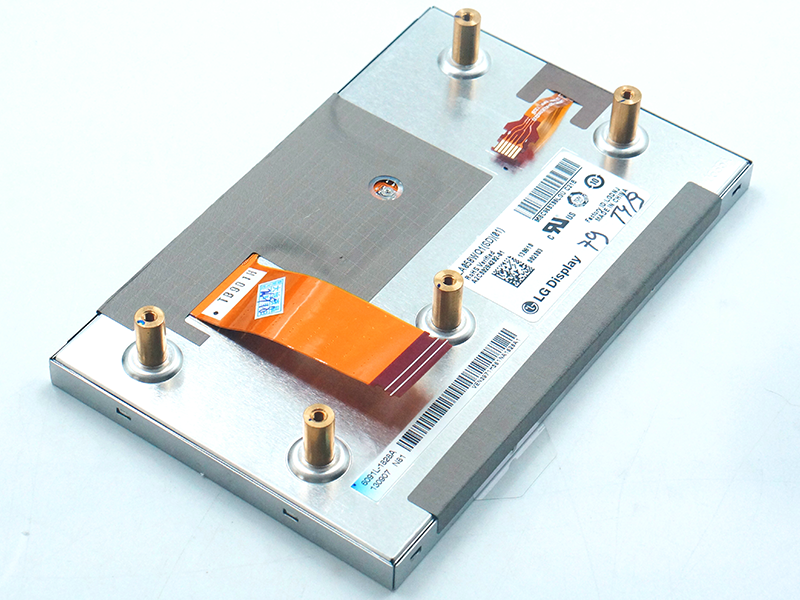

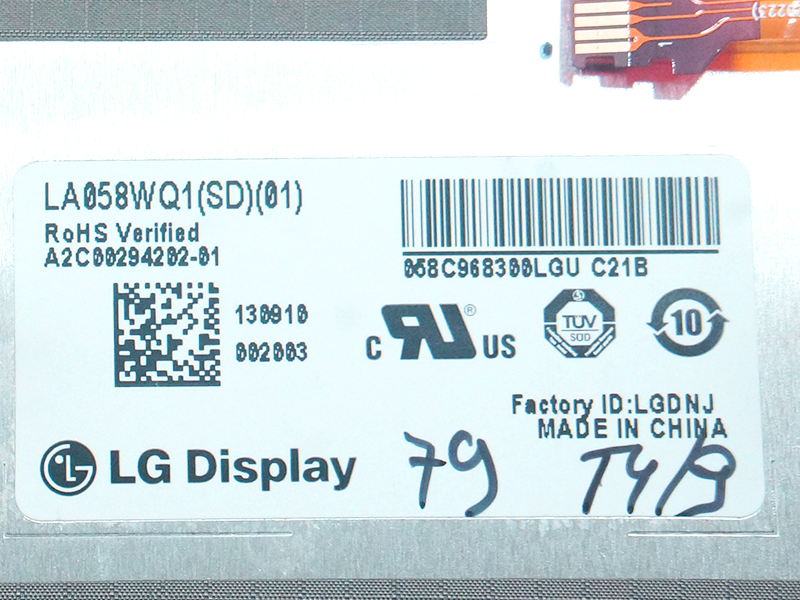

| Model: | LA058WQ1-SD01 |
| Brand: | LG Display |
| Diagonal Size: | 5.8 inch |
| Resolution: | 400 × 240 (WQVGA, 80 PPI) |
| Pixel Format: | RGB Vertical Stripe |
| Panel Type: | a-Si TFT-LCD, LCM |
| Display Mode: | IPS, Normally Black, Transmissive |
| Brightness: | 470 cd/m² (Min.) |
| Contrast Ratio: | 900:1 (Typ.) (TM) |
| Viewing Angle: | 70/70/30/30 (Typ.) (L/R/U/D) |
| Best Viewing Direction: | Symmetry |
| Response Time: | 15/10 (Typ.)(Tr/Td) ms |
| Display Colors: | 262K 63% NTSC |
| Surface: | Antiglare (Haze 11%), Antireflection |
| Backlight: | 7S1P WLED, 20K hours, Without Driver |
| Refresh Rate: | 60 Hz |
| Interface: | Parallel RGB (1 ch, 6-bit), 40 pins FPC |
| Touch Panel: | Without |
| Active Area: | 126.36 × 75.84 mm |
| Bezel Opening: | 130.8 × 80.3 mm |
| Outline Dimensions: | 152 × 97 × 24.7 mm |
| Weight: | 211/216 g (Typ./Max.) |
| Power Supply: | 3.3V (Typ.) |
| Operating Temperature: | -40 ~ 95 °C |
| Storage Temperature: | -40 ~ 105 °C |
| Application: | Automotive Display |
| LCD Panel Specs | |
| Diagonal Size | 5-6.9" |
| Resolution | 0-479 px (QVGA) |
| Interface | Parallel RGB / TTL |
| Pin Count | 31-40 |
| Application | Automotive |
| Panel Technology | a-Si TFT-LCD |
| Display Mode | IPS / ADS / AHVA / FFS |
| Touch Panel | Without touch |
| Brightness | 300-499 nits |
| Backlight | LED |
| Operating Temp | Wide (-30 °C) |
