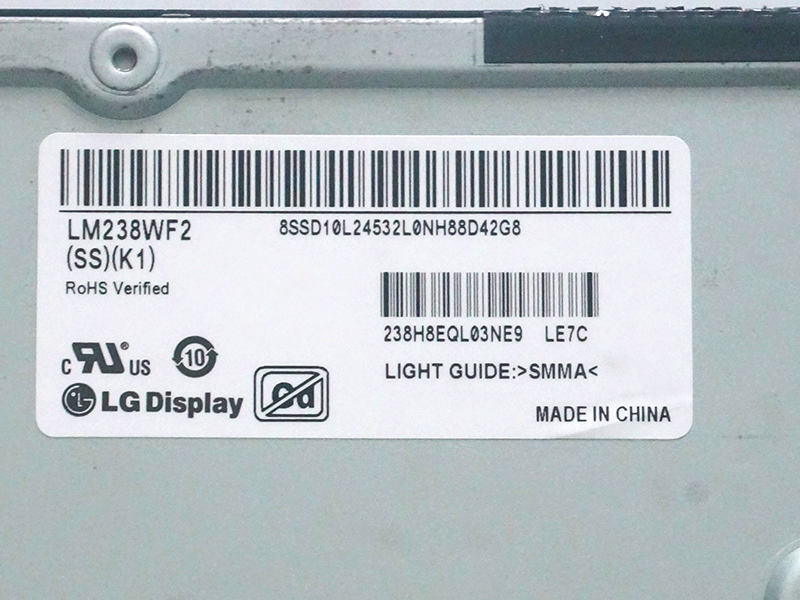

LG Display LM238WF2-SSK1 LCD

{{ product.price_format }}
{{ product.origin_price_format }}
Stock:
Brand: LG Display
SKU:{{ product.sku }}
Model: {{ product.model }}

{{ variable.name }} : {{ variable.values[selectedVariantsIndex[variable_index]].name }}

{{ value.name }}

Quantity:

Specification

Model P/N:LM238WF2-SSK1
Brand:LG Display
Diagonal Size:23.8"
Resolution:1920(RGB)×1080, FHD 92PPI
Contrast Ratio:1000:1 (Typ.) (TM)
Viewing Angle:89/89/89/89 (Typ.)(CR≥10)
Panel Type:a-Si TFT-LCD, LCM
Pixel Format:RGB Vertical Stripe
Active Area:527.04(W)×296.46(H) mm
Bezel Opening:-
Outline Dim:535(H)×313(V) ×13.2(D) mm
Treatment:Antiglare (Haze 25%), Hard coating (3H)
Luminance:250 cd/m² (Typ.)
View Direction:Symmetry
Response Time:14 (Typ.)(G to G)
Operating Mode:IPS, Normally Black, Transmissive
Support Color:16.7M 69% NTSC
Light Source:WLED [15S4P] , 30K hours , W/O Driver
Weight:1.91/2.01Kgs (Typ./Max.)
Designed For:Desktop Monitor
Frame Rate:75Hz
Touch Panel:Without
Interface Type:LVDS (2 ch, 8-bit) , 30 pins Connector
Power Supply:5.0V (Typ.)
