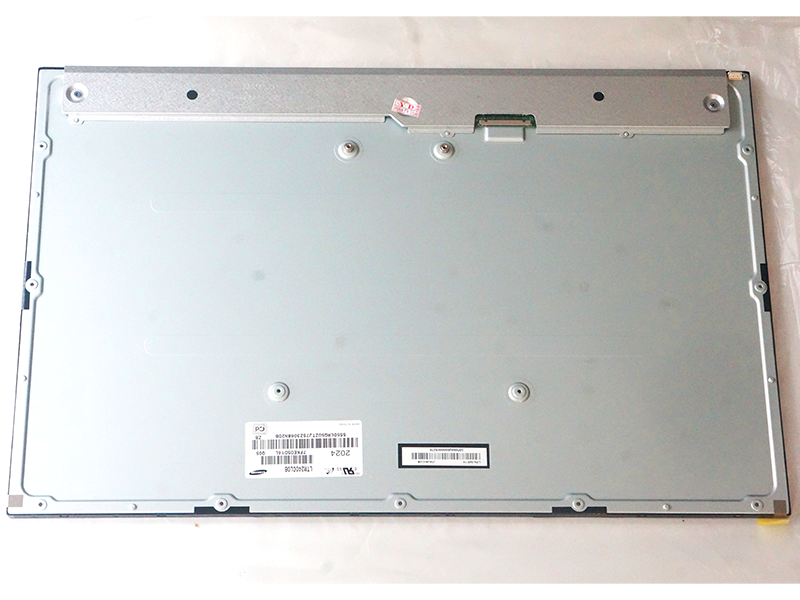

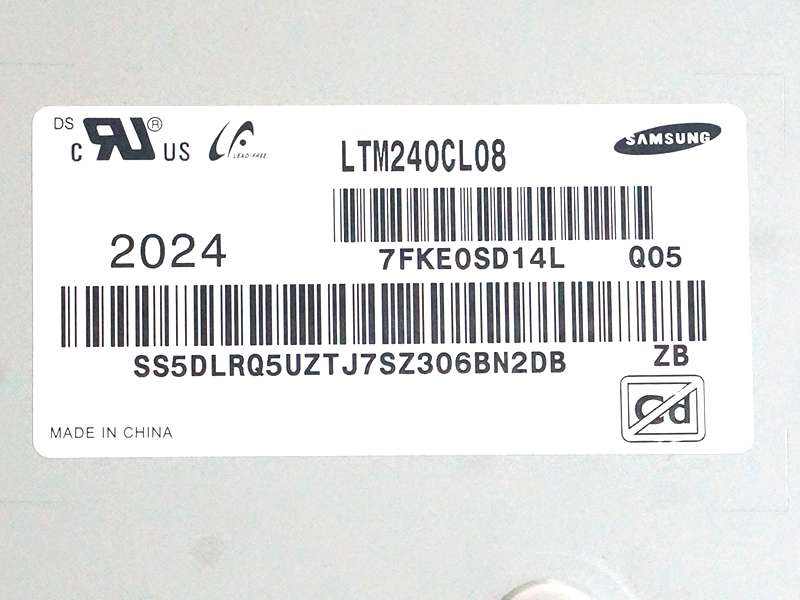

Samsung LTM240CL08 24" 1920x1200 LCD Panel

{{ product.price_format }}
{{ product.origin_price_format }}
Fast Delivery to United States
Stock:
Brand: Samsung
Model: {{ product.model }}

{{ variable.name }} : {{ variable.values[selectedVariantsIndex[variable_index]].name }}

{{ value.name }}

Condition:

✓ {{ newUsedPrice.used_note }}

Quantity:

Specification

Model: LTM240CL08
Brand: Samsung
Diagonal Size: 24 inch
Resolution: 1920 × 1200 (WUXGA, 94 PPI)
Pixel Format: RGB Vertical Stripe
Panel Type: a-Si TFT-LCD, LCM
Display Mode: PLS, Normally Black, Transmissive
Brightness: 300 cd/m² (Typ.)
Contrast Ratio: 1000:1 (Typ.) (TM)
Viewing Angle: 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Best Viewing Direction: Symmetry
Response Time: 15 (Typ.)(G to G) ms
Display Colors: 16.7M 100% sRGB
Surface: Antiglare (Haze 25%), Hard coating (3H)
Backlight: WLED, 40K hours, No Driver
Refresh Rate: 65 Hz
Interface: LVDS (2 ch, 8-bit), 30 pins Connector
Touch Panel: Without
Active Area: 518.4 × 324 mm
Outline Dimensions: 528.2 × 342.4 × 13.15 mm
Weight: 2.85 kg (Max.)
Power Supply: 5.0V (Typ.)
Operating Temperature: 0 ~ 50 °C
Storage Temperature: -20 ~ 60 °C
Application: Desktop Monitor
LCD Panel Specs
Diagonal Size 24-31.9"
Resolution 1920-2559 px (FHD/WUXGA)
Interface LVDS
Pin Count 21-30
Application Monitor
Panel Technology a-Si TFT-LCD
Touch Panel Without touch
Brightness 300-499 nits
Backlight LED
Operating Temp Standard (0 °C)
