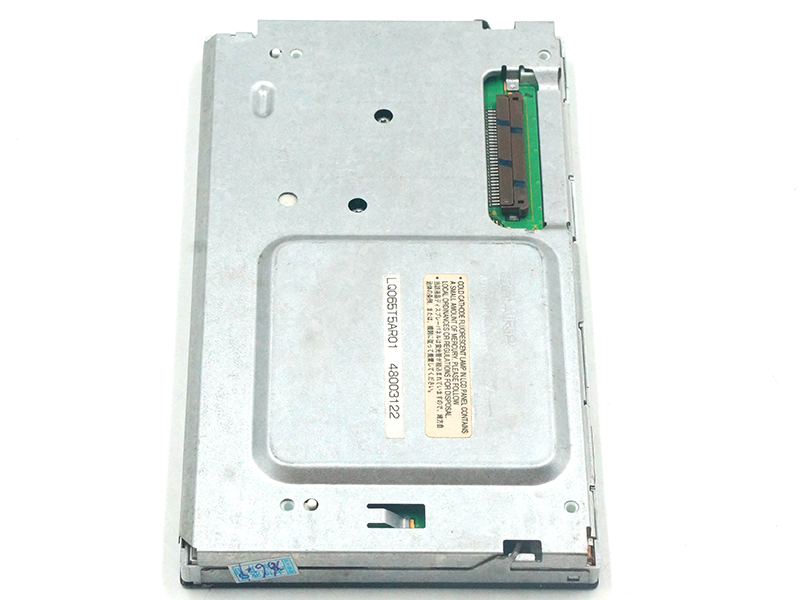

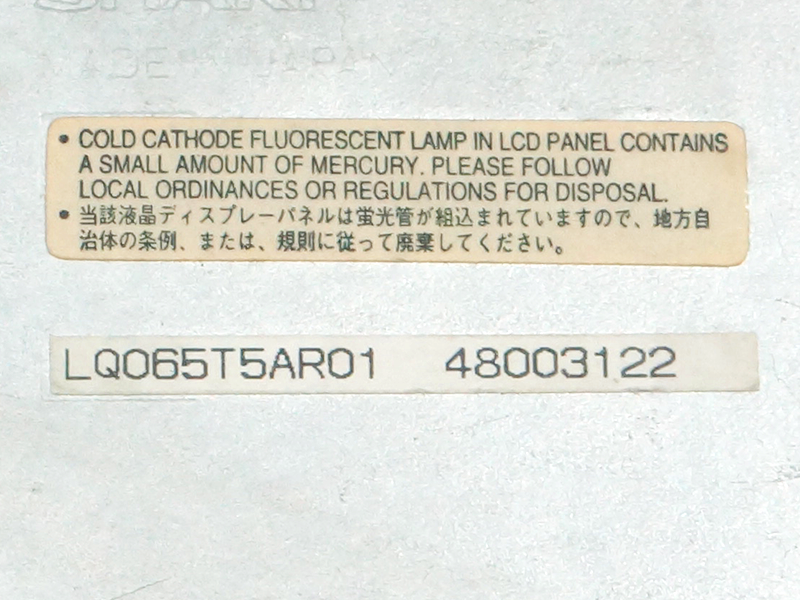

| Model: | LQ065T5AR01 |
| Brand: | Sharp |
| Diagonal Size: | 6.5 inch |
| Resolution: | 400 × 234 (71 PPI) |
| Pixel Format: | RGB Vertical Stripe |
| Panel Type: | a-Si TFT-LCD, LCM |
| Display Mode: | TN, Normally White, Transmissive |
| Brightness: | 420 cd/m² (Typ.) |
| Contrast Ratio: | 60:1 (Min.) (TM) |
| Viewing Angle: | 65/65/40/65 (Typ.)(CR≥5) (L/R/U/D) |
| Best Viewing Direction: | 6 o'clock |
| Response Time: | 30/50 (Typ.)(Tr/Td) ms |
| Display Colors: | Full color |
| Surface: | Antiglare, Antireflection |
| Backlight: | 1 pcs CCFL, 10K hours, With Inverter |
| Refresh Rate: | 60 Hz |
| Interface: | Analog RGB + Composite Video (NTSC/PAL), 30 pins Connector |
| Touch Panel: | Without |
| Active Area: | 143.4 × 79.326 mm |
| Bezel Opening: | 145.65 × 80.95 mm |
| Outline Dimensions: | 155 × 89.2 × 16.5 mm |
| Weight: | 240 g (Max.) |
| Power Supply: | 8.0V (Typ.) |
| Operating Temperature: | -30 ~ 85 °C |
| Storage Temperature: | -30 ~ 85 °C |
| Application: | Automotive Display |
Package size: 24*17*5cm
Packing weight: 0.4KG
Gross weight: 0.5-1KG
| LCD Panel Specs | |
| Diagonal Size | 5-6.9" |
| Resolution | 0-479 px (QVGA) |
| Pin Count | 21-30 |
| Application | Automotive |
| Panel Technology | a-Si TFT-LCD |
| Display Mode | TN |
| Touch Panel | Without touch |
| Brightness | 300-499 nits |
| Backlight | CCFL / EEFL |
| Operating Temp | Wide (-30 °C) |
