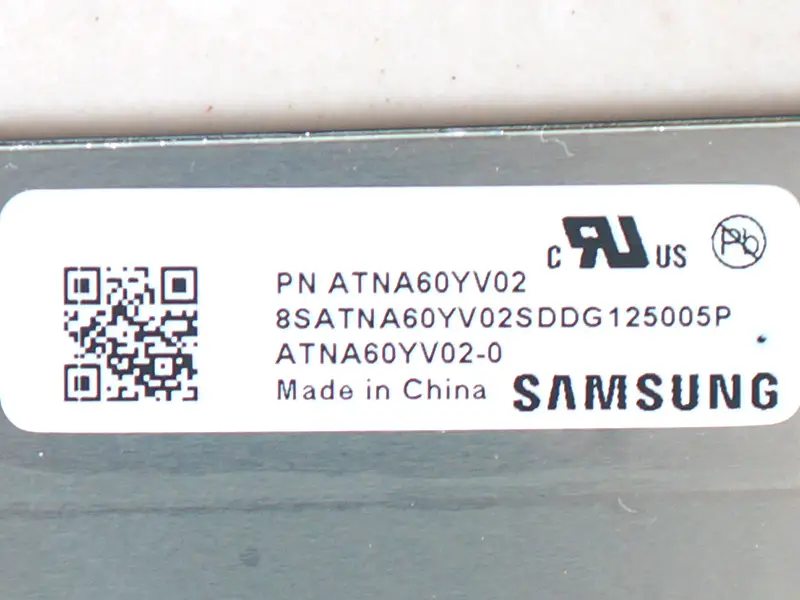

ATNA60YV02-0 ATNA60YV02 16.0 Inch Non Touch OLED Display Panel Screen

Specification

Model P/N:ATNA60YV02-0
Brand:Samsung
Diagonal Size:16.0"
Resolution:3840(RGB)×2400, WQUXGA 283PPI
Contrast Ratio:100000 : 1 (Typ.) (TM)
Viewing Angle:88/88/88/88 (Typ.)(CR≥10)
Color Depth:1.07B 100% DCI-P3
Backlight:self
Signal Type:eDP (4 Lanes) , eDP1.4b , 40 pins Connector
Panel Type:AM-OLED, OLED , Full Module
Pixel Format:RGB Vertical Stripe
Active Area:344.448(W)×215.28(H) mm
Bezel Opening:-
Treatment:Glare (Haze 0%)
Luminance:400 cd/m² (Typ.)
Outline(mm):348.45 × 222.88 × 1.48 (H×V×D)
Response:1 (Typ.)(Tr+Td) ms
Good View at:Symmetry
Work Mode:-
Used for:Laptop
Refresh Rate:60Hz
Touchscreen:Without
Voltage Supply:3.3/10.0V (Typ.)(VDD/VBAT)
Max. Ratings:Storage Temp.: -40 ~ 85 °C Operating Temp.: -20 ~ 70 °C
Outline Shape:Slim (PCBA Flat, T≤3.2mm)
