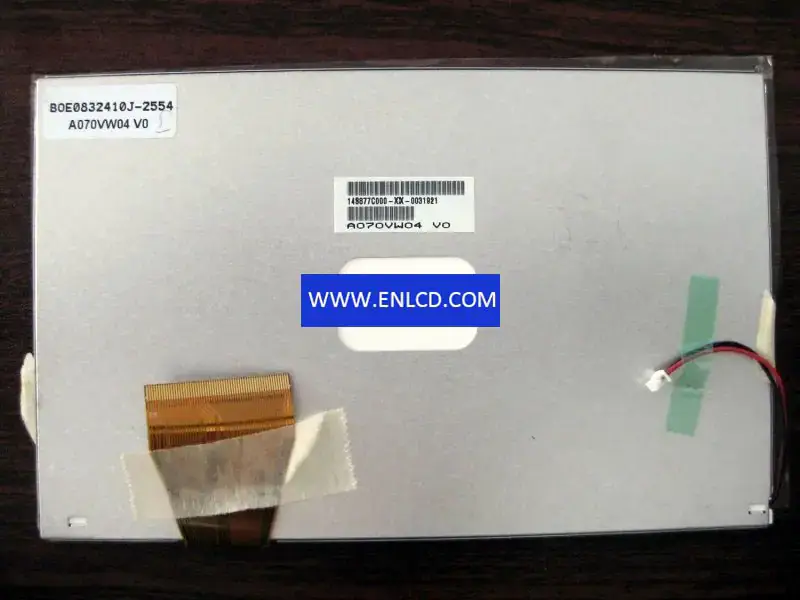

AUO A070VW04 V0 LCD panel replacement

Brand：AUO
Model：A070VW04 V0
Diagonal Size：7.0 inch
Type：a-Si TFT-LCD, LCM
Pixel Format：800(RGB)×480[WVGA]
Configuration：RGB Vertical Stripe
Active Area：152.4(H)×91.44(V) mm
Outline Dim.：164(H)×103(V)×5.4(D) mm
Bezel Area：154.4(H)×93.44(V) mm
Treatment：Antiglare
Luminance：200 cd/m2 (Typ.)
Contrast Ratio：400:1 (Typ.) (TM)
View Direction：-
Response Time：12/18 (Typ.)(Tr/Td)
Viewing Angle：70/70/70/70 (Typ.)(CR≥10)
Operating Mode：TN, Normally White, Transmissive
Support Color：16.7M
Light Source：WLED[3S7P], 10K hours, W/O Driver
Weight：154±14g
Designed For： Portable DVD Player, MP4 PMP, Digital Photo Frame,
Frame Rate：-
Touch Panel：Without
Interface Type： 60 pinsParallel RGB (1 ch, 8-bit) + SPI, FPC
Power Supply：3.3/11/18/-7V (Typ.)(VCC/AVDD/VGH/VGL)
Environment：Operating Temperature: 0 ~ 60 °C; Storage Temperature: -10 ~ 70 °C
