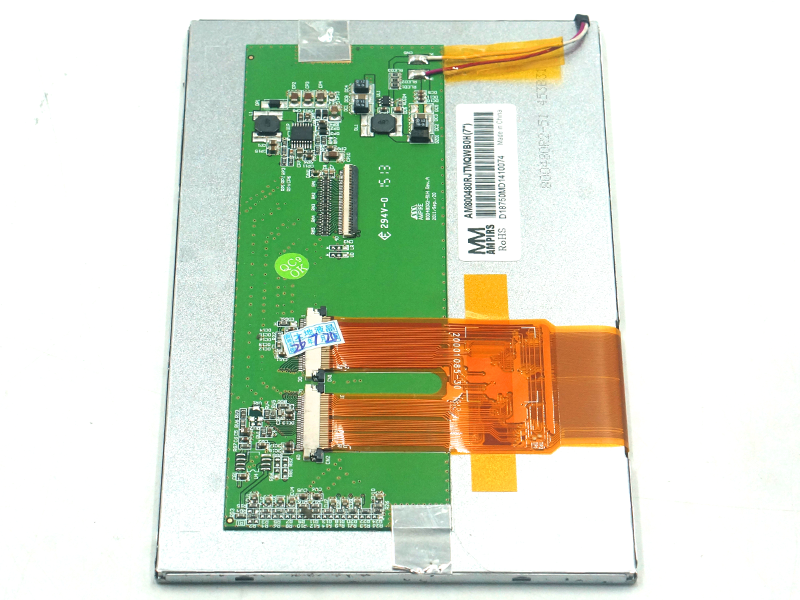

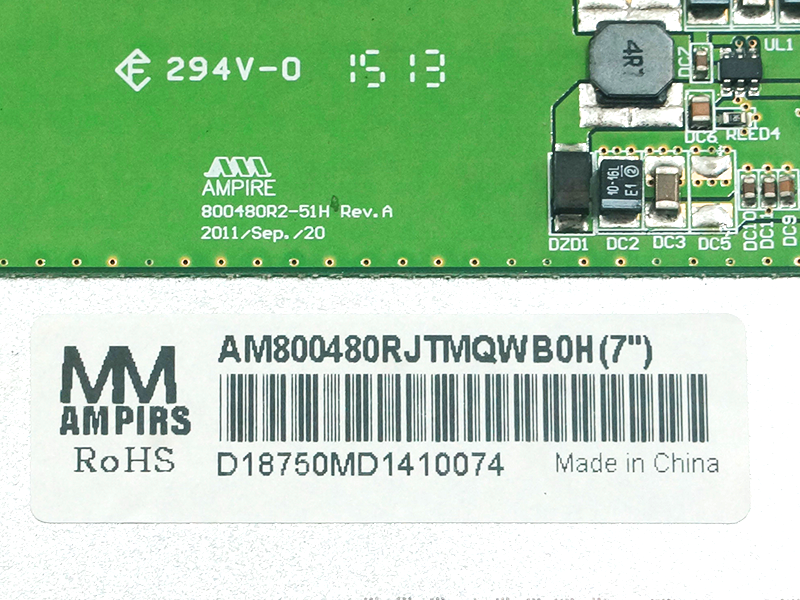

AMPIRE AM-800480RJTMQW-B0H LCD

Specification

Model P/N:AM-800480RJTMQW-B0H
Brand:AMPIRE
Diagonal Size:7.0"
Resolution:800(RGB)×480, WVGA 133PPI
Contrast Ratio:400 : 1 (Typ.) (TM)
Viewing Angle:70/70/60/60 (Typ.)(CR≥10)
Color Depth:16.7M
Backlight:3S10P WLED , 40K hours , No Driver
Signal Type:Parallel RGB (1 ch, 8-bit) , Connector 40 pins
Panel Type:a-Si TFT-LCD, LCM
Pixel Format:RGB Vertical Stripe
Active Area:152.4(W)×91.44(H) mm
Bezel Opening:155.3(W)×94.30(H) mm
Treatment:-
Luminance:500 cd/m² (Typ.)
Response:5/11 (Typ.)(Tr/Td) ms
Good View at:-
Work Mode:TN, Normally White, Transmissive
Mass:-
Used for:Automotive Display
Refresh Rate:60Hz
Touchscreen:Without
Voltage Supply:3.3V (Typ.)
Max Ratings:Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C
Outline (mm):165×104.44×7.06 (H×V×D)
