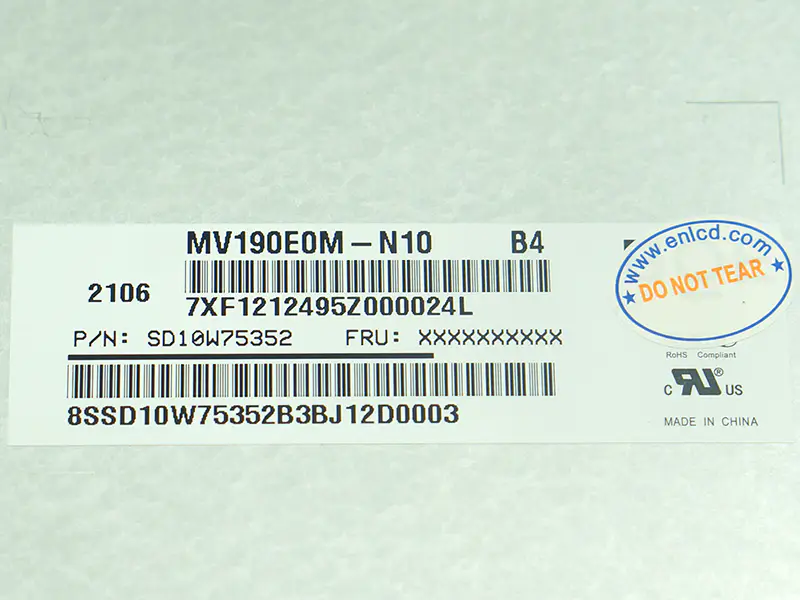

BOE MV190E0M-N10 LCD panel

Brand：BOE
Model：MV190E0M-N10
Diagonal Size：19.0 inch
Type：a-Si TFT-LCD, LCM
Pixel Format：1280(RGB)×1024[SXGA]
Configuration：RGB Vertical Stripe
Active Area：374.784(H)×299.827(V) mm
Outline Dim.：396(H)×324(V)×10.4(D) mm
Bezel Area：378.8(H)×303.0(V) mm
Treatment：Antiglare (Haze 25%), Hard coating (3H)
Luminance：250 cd/m2 (Typ.)
Contrast Ratio：1000:1 (Typ.) (TM)
View Direction：Symmetry
Response Time：8/8 (Typ.)(Tr/Td); 14 (Typ.)(G to G)
Viewing Angle：89/89/89/89 (Typ.)(CR≥10)
Operating Mode：ADS, Normally Black, Transmissive
Support Color：16.7M 72%(CIE1931)
Light Source：WLED[2 strings], 30K hours, W/O Driver
Weight： 1.72Kgs (Typ.)
Designed For： Industrial Application, Desktop Monitor,
Frame Rate：60Hz
Touch Panel：Without
Interface Type： 30 pinsLVDS (2 ch, 8-bit), Connector
Power Supply：5.0V (Typ.)
Environment： Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
Packaging size: 49*38*9cm
Packaging weight: 2.6KG
Gross weight: 3.4KG
