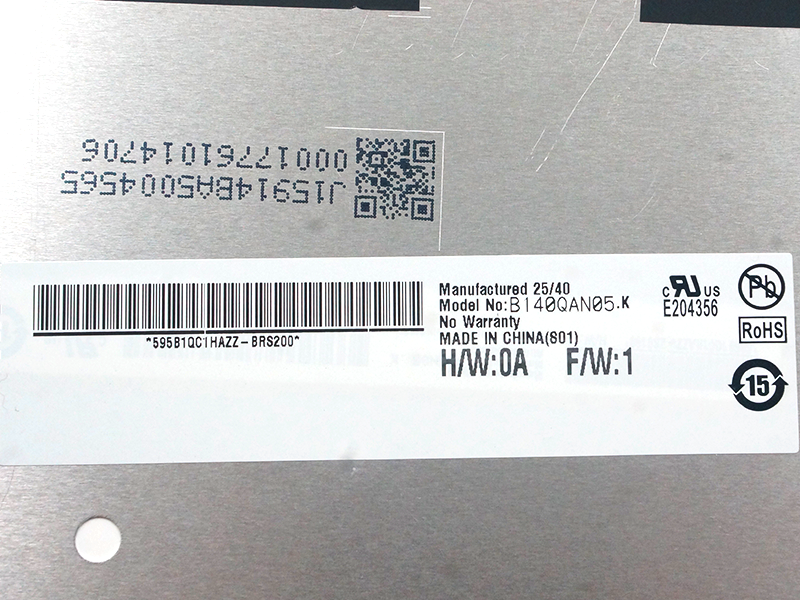

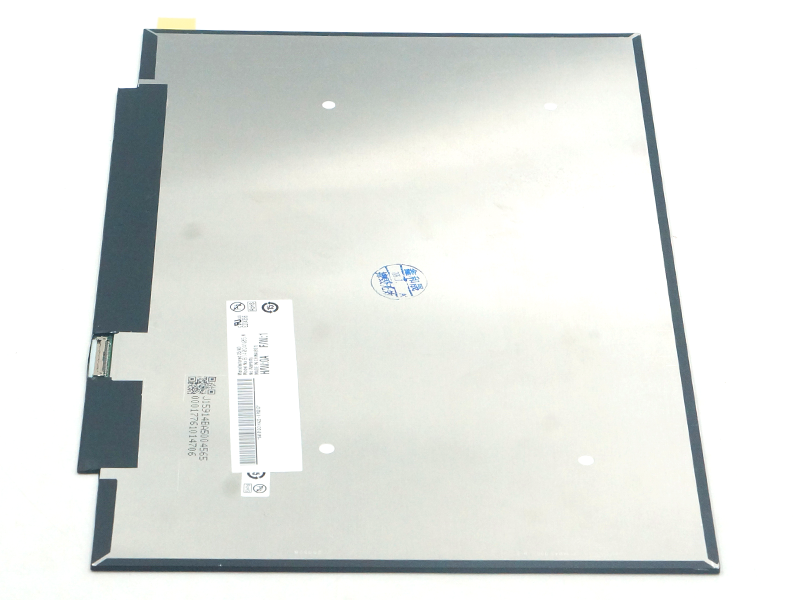

AUO B140QAN05.K LCD

Specification

Model P/N:B140QAN05.K
Brand:AUO
Diagonal Size:14.0"
Resolution:2240(RGB)×1400 188PPI
Contrast Ratio:1200 : 1 (Typ.) (TM)
Viewing Angle:85/85/85/85 (Typ.)(CR≥10
Color Depth:16.7M 100% sRGB
Backlight:WLED , 15K hours , With LED Driver
Signal Type:eDP (4 Lanes) , eDP1.4 , Connector
Panel Type:a-Si TFT-LCD, LCM
Pixel Format:RGB Vertical Stripe
Active Area:301.526(W)×188.454(H) mm
Bezel Opening:-
Treatment:Hard coating (3H)
Luminance:300 cd/m² (Typ.)
Response:20 (Typ.)(Tr+Td) ms
Good View at:Symmetry
Work Mode:AHVA, Normally Black, Transmissive
Used for:Laptop
Refresh Rate:60Hz
Touchscreen:Without
Voltage Supply:3.3V (Typ.)
Max Ratings:Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
Outline (mm):306.55×204.47×2.4 (H×V×D)
Outline Shape:Slim (PCBA Flat, T≤3.2mm)
