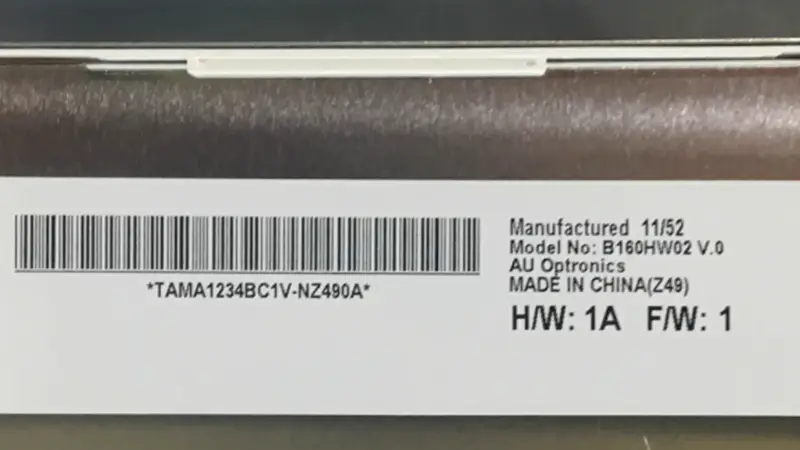

AUO B160HW02 V0 LCD panel

Manufacturer：AUO
Model Name：B160HW02 V0
Screen Size：16.0 inch
Screen Type：LCM ,a-Si TFT-LCD
Pixel Number：1920(RGB)×1080 (FHD)
Arrangement：RGB Vertical Stripe
Active Area(mm)： 354.24 × 199.26 (H×V)
Outline(mm)：375 × 218 (H×V×D)
Bezel Area(mm)： –
Treatment： Antiglare
Luminance：225 cd/m2 (Typ.)
Contrast Ratio：500 : 1 (Typ.) (TM)
Viewing Angle： 80/80/80/80 (Min.)(CR≥10)
Response： 4 (Typ.)(Tr+Td) ms
Good View at： –
Work Mode： TN, Normally White, Transmissive
Color Depth：262K 82%(CIE1931)
Backlight：WLED, With LED Driver
Outline Shape： –
Used for： Laptop,
Refresh Rate：60Hz
Touchscreen：Without
Signal Type：eDP (4 Lanes), Connector, 30 pins
Voltage Supply：3.3/5.0V (Typ.)(VDD33/VDD5)
Max. Ratings：Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
