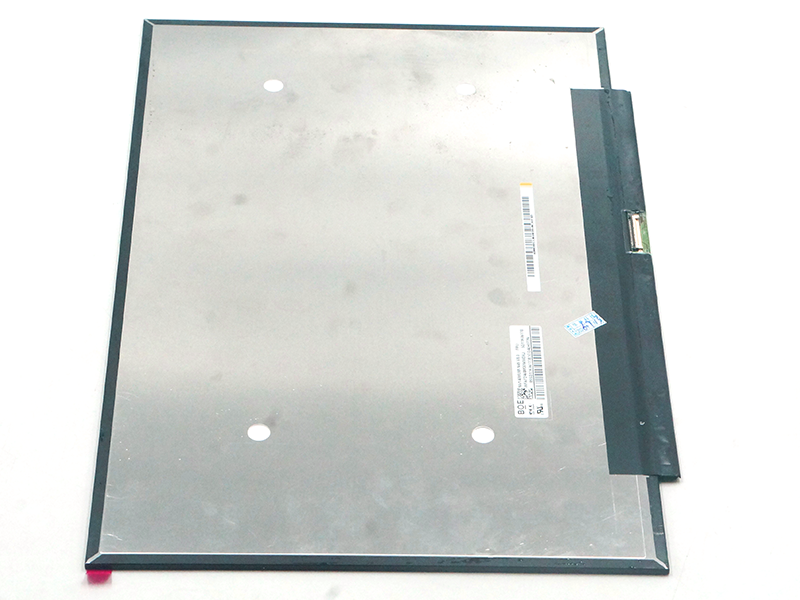

BOE NV140WUM-N45 LCD

Specification

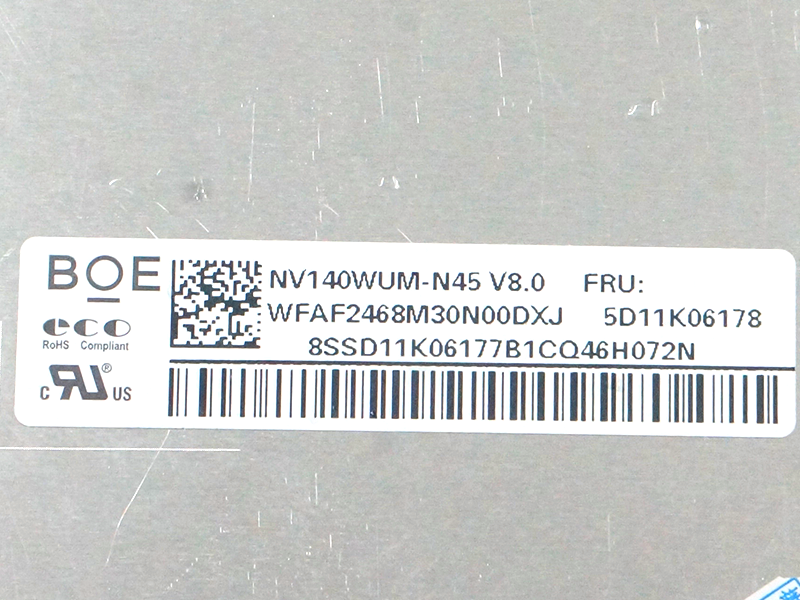

Model P/N:NV140WUM-N45 1
Brand:BOE
Diagonal Size:14.0"
Resolution:1920(RGB)×1200, WUXGA 161PPI
Contrast Ratio:1200 : 1 (Typ.) (TM)
Viewing Angle:85/85/85/85 (Typ.)(CR≥10)
Color Depth:16.2M 45% NTSC
Backlight:10S6P WLED , 15K hours , With LED Driver
Signal Type:eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , Connector 30 pins
Panel Type:a-Si TFT-LCD, LCM
Pixel Format:RGB Vertical Stripe
Active Area:301.594(W)×188.496(H) mm
Bezel Opening:-
Treatment:Antiglare, Hard coating (3H)
Luminance:300 cd/m² (Typ.)
Response:20 (Typ.)(Tr+Td) ms
Good View at:Symmetry
Work Mode:HADS, Normally Black, Transmissive
Used for:Laptop
Refresh Rate:60Hz
Touchscreen:Without
Voltage Supply:3.3V (Typ.)
Max Ratings:Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
Outline (mm):306.59×206×3 (H×V×D)
Outline Shape:Slim (PCBA Flat, T≤3.2mm)
