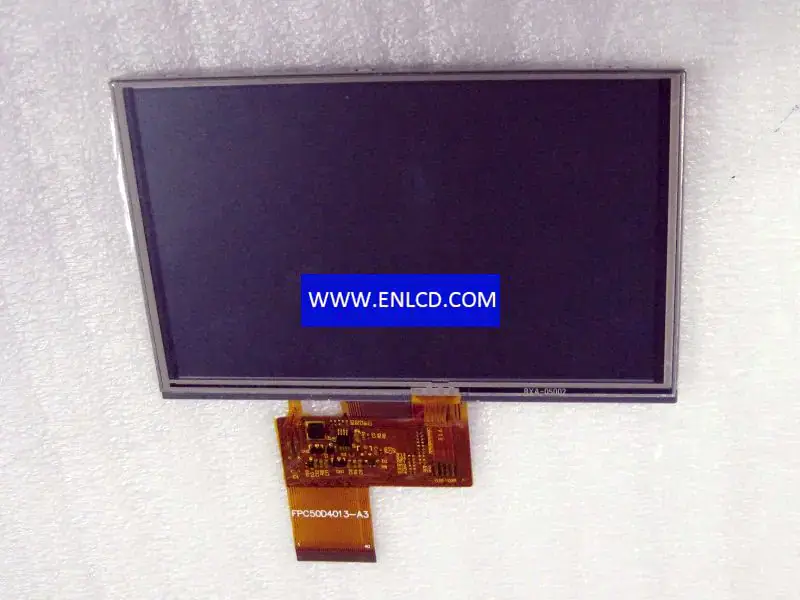

DLC0500HZG-T-8 LCD panel replacement

Brand：DLC
Model：DLC0500HZG-T-8
Diagonal Size：5.0 inch
Type：a-Si TFT-LCD, LCM
Pixel Format：800(RGB)×480[WVGA]
Configuration： RGB Vertical Stripe
Active Area：108(H)×64.8(V) mm
Outline Dim.：120.7(H)×75.8(V)×4.5(D) mm
Bezel Area：110.7(H)×67.4(V) mm
Treatment：Antiglare, Hard coating (3H)
Luminance：640 cd/m2 (Typ.)
Contrast Ratio： 500:1 (Typ.) (TM)
View Direction：12 o’clock
Response Time：20 (Typ.)(Tr+Td)
Viewing Angle：70/70/50/70 (Typ.)(CR≥10)
Operating Mode：TN, Normally White, Transmissive
Support Color：16.7M 50%(CIE1931)
Light Source：WLED[10S2P], 30K hours, W/O Driver
Weight： TBD
Designed For： Portable Navigation, Pocket TV, MP4 PMP, MID UMPC, Automotive Display, Industrial Application,
Frame Rate：60Hz
Touch Panel：Embeded (4-wire Resistive)
Interface Type： 40 pinsParallel RGB (1 ch, 8-bit), FPC
Power Supply：3.3V (Typ.)
Environment： Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C
