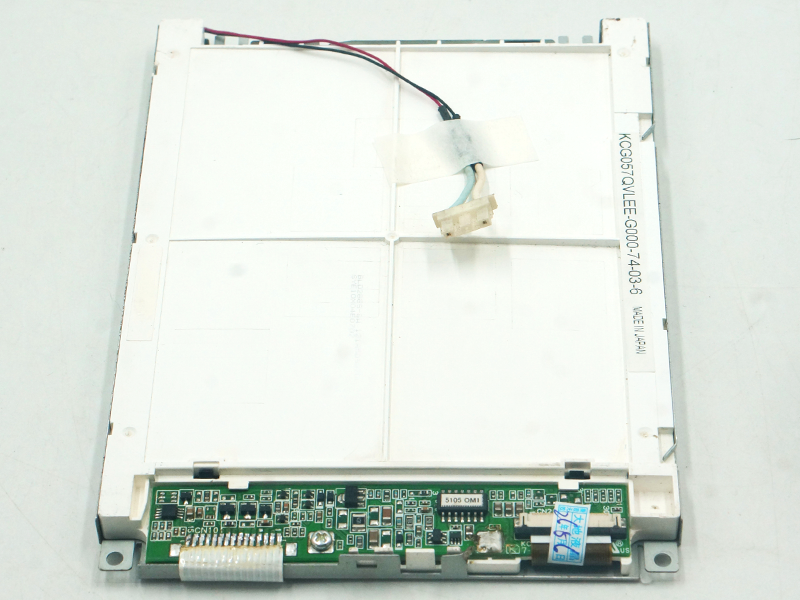

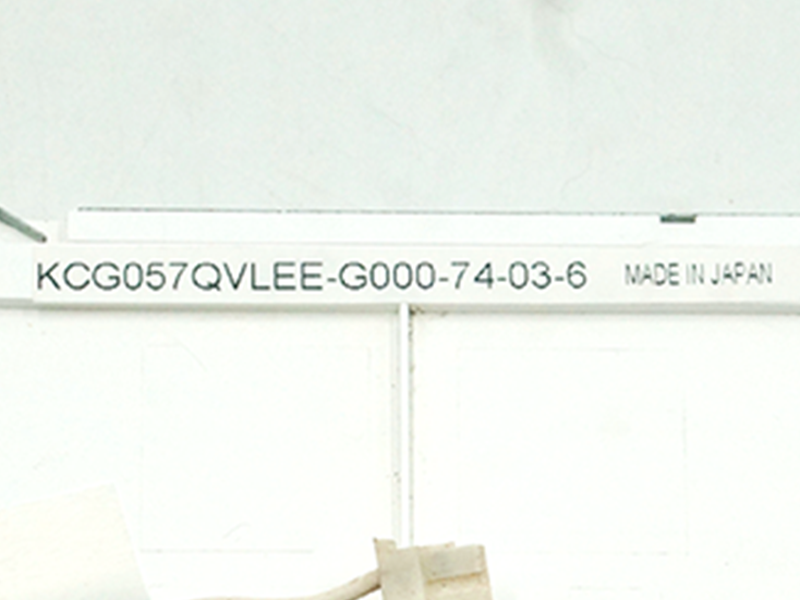

Kyocera KCG057QVLEE-G000 LCD

Specification

Model P/N:KCG057QVLEE-G000
Brand:Kyocera
Diagonal Size:5.7"
Resolution:320(RGB)×240, QVGA 70PPI
Contrast Ratio:55:1 (Typ.) (TM)
Viewing Angle:50/50/20/35 (Typ.)(CR≥2)
Panel Type:CSTN-LCD, LCM
Pixel Format:RGB Vertical Stripe
Active Area:115.2(W)×86.4(H) mm
Bezel Opening:120.2(W)×91.4(H) mm
Outline Dim:154.6(H)×114.8(V) ×11.1(D) mm
Treatment:Glare (Haze 0%)
Luminance:160 cd/m² (Typ.)
View Direction:-
Response Time:320/170 (Typ.)(Tr/Td)
Operating Mode:STN, Normally Black, Transmissive
Support Color:Color 36% NTSC
Light Source:WLED , 20K hours , W/O Driver
Weight:215g (Typ.)
Designed For:Industrial
Frame Rate:75Hz
Touch Panel:4-wire Resistive Touch
Interface Type:Parallel Data (1ch, 8-bit) , 15 pins Connector
Power Supply:3.3/5.0V (Typ.)(VDD)
