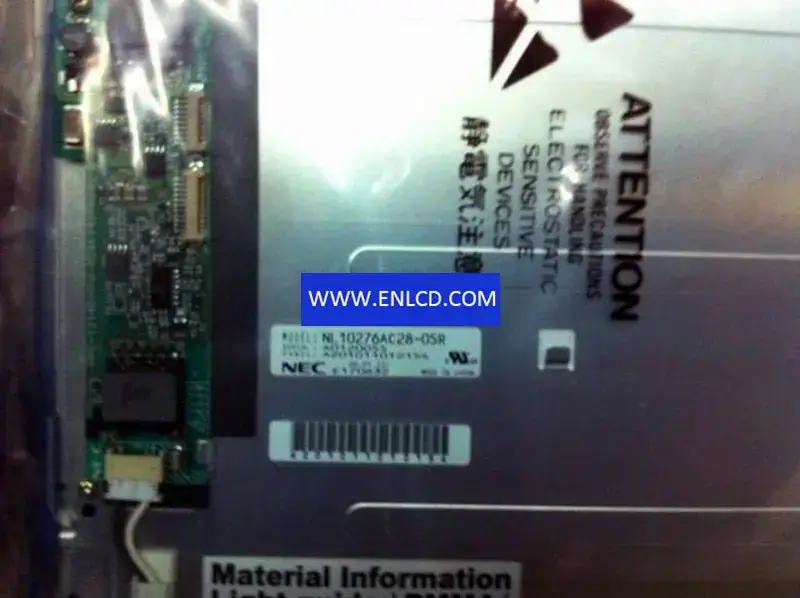

| Model: | NL10276AC28-05R |
| Brand: | NEC (NLT) |
| Diagonal Size: | 14.1 inch |
| Resolution: | 1024 × 768 (XGA, 91 PPI) |
| Pixel Format: | RGB Vertical Stripe |
| Panel Type: | a-Si TFT-LCD, LCM |
| Display Mode: | TN, Normally White, Transmissive |
| Brightness: | 220 cd/m² (Typ.) |
| Contrast Ratio: | 150:1 (Typ.) (TM) |
| Viewing Angle: | 50/50/20/35 (Typ.)(CR≥10) (L/R/U/D) |
| Best Viewing Direction: | 6 o'clock |
| Response Time: | 11/40 (Typ.)(Tr/Td) ms |
| Display Colors: | 262K 40% NTSC |
| Surface: | Antiglare, Hard coating (3H) |
| Backlight: | CCFL [2 pcs], With Inverter |
| Interface: | LVDS (1 ch, 6-bit), 20 pins Connector |
| Touch Panel: | Without |
| Active Area: | 285.696 × 214.272 mm |
| Bezel Opening: | 290.4 × 219 mm |
| Outline Dimensions: | 330 × 255 × 20.5 mm |
| Weight: | 1.18/1.30 kg (Typ./Max.) |
| Power Supply: | 5.0V (Typ.) |
| Operating Temperature: | 0 ~ 50 °C |
| Storage Temperature: | -20 ~ 60 °C |
| Application: | Desktop Monitor |
| LCD Panel Specs | |
| Diagonal Size | 13-14.9" |
| Resolution | 800-1279 px (WVGA/SVGA/XGA) |
| Interface | LVDS |
| Pin Count | 1-20 |
| Application | Monitor |
| Panel Technology | a-Si TFT-LCD |
| Display Mode | TN |
| Brightness | 0-299 nits |
| Backlight | CCFL / EEFL |
| Operating Temp | Standard (0 °C) |
