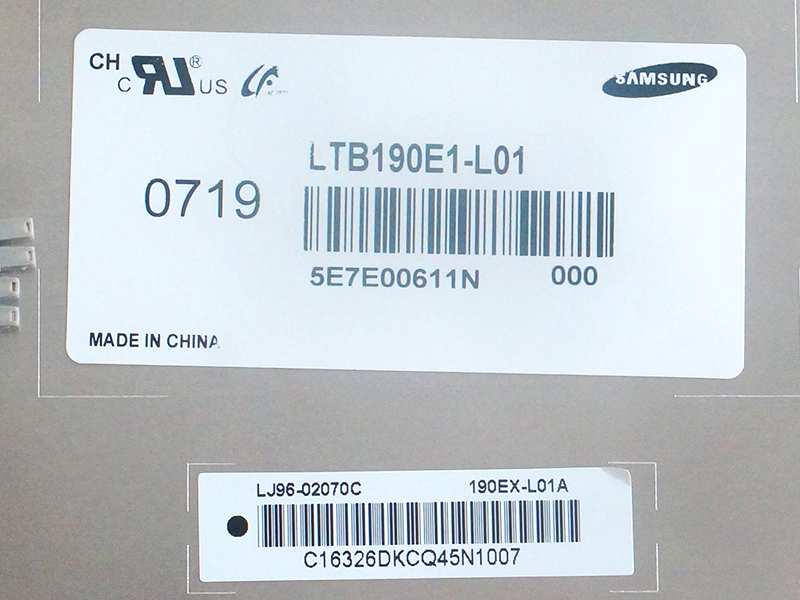

| Model: | LTB190E1-L01 |
| Brand: | Samsung |
| Diagonal Size: | 19 inch |
| Resolution: | 1280 × 1024 (SXGA, 86 PPI) |
| Pixel Format: | RGB Vertical Stripe |
| Panel Type: | a-Si TFT-LCD, LCM |
| Display Mode: | S-PVA, Normally Black, Transmissive |
| Brightness: | 250 cd/m² (Typ.) |
| Contrast Ratio: | 1000:1 (Typ.) (TM) |
| Viewing Angle: | 90/90/90/90 (Typ.)(CR≥10) (L/R/U/D) |
| Best Viewing Direction: | Symmetry |
| Response Time: | 20 (Typ.)(Tr+Td) ms |
| Display Colors: | 16.7M 72% NTSC |
| Backlight: | 4 pcs CCFL |
| Refresh Rate: | 60 Hz |
| Interface: | LVDS (2 ch, 8-bit) |
| Active Area: | 376.32 × 301.056 mm |
| Outline Dimensions: | 396 × 324 mm |
| Power Supply: | 5.0V (Typ.) |
| Application: | Industrial |
| LCD Panel Specs | |
| Diagonal Size | 17-23.9" |
| Resolution | 1280-1919 px (WXGA/HD/SXGA) |
| Interface | LVDS |
| Application | Industrial |
| Panel Technology | a-Si TFT-LCD |
| Display Mode | VA / MVA / AMVA |
| Brightness | 0-299 nits |
| Backlight | CCFL / EEFL |
