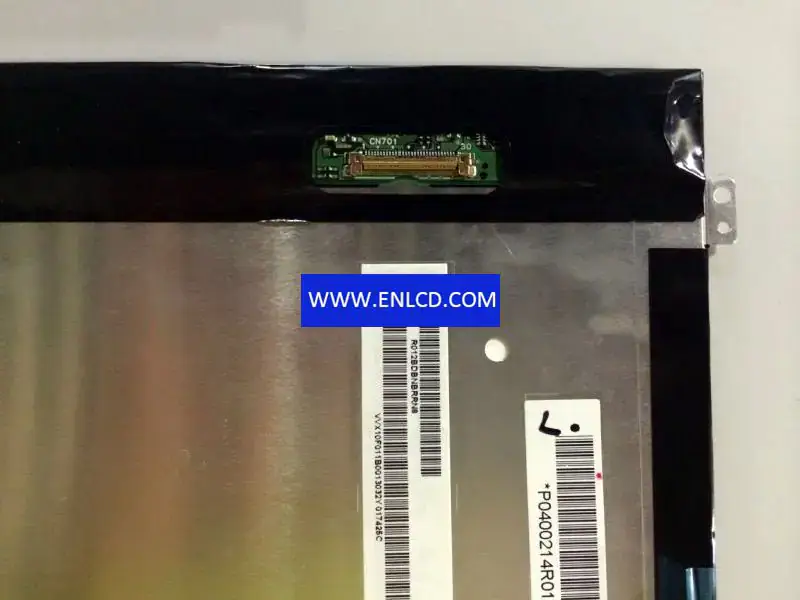

VVX10F011B00 Panasonic LCD panel replacement

Brand：Panasonic
Diagonal Size：10.1 inch
Pixel Format：1920(RGB)×1200[WUXGA]
Active Area：217.44(H)×135.9(V) mm
Bezel Area：-
Luminance：650 cd/m2 (Min.)
View Direction：Symmetry
Viewing Angle：80/80/80/80 (Typ.)(CR≥100)
Support Color：16.7M 50% (CIE1931)
Weight：137g (Typ.)
Frame Rate： 60Hz
Model：VVX10F011B00
Type：a-Si TFT-LCD , LCM
Configuration：RGB Vertical Stripe
Outline Dim.： 228.86(H)×152.5(V)×4.18(D)mm
Treatment：Hard coating, Antireflection
Contrast Ratio： 1000:1 (Typ.) (TM)
Response Time：35 (Max.)(Tr+Td)
Operating Mode： IPS, Normally Black, Transmissive
Light Source： WLED [10S6P], With LED Driver
Designed For： Pad & Tablet,
Touch Panel：Without
Interface Type： 30 pinseDP (2 Lanes), Connector
Power Supply： 3.3V (Typ.)
Environment： Operating Temperature: 0 ~ 50 °C; Storage Temperature: -20 ~ 60 °C
