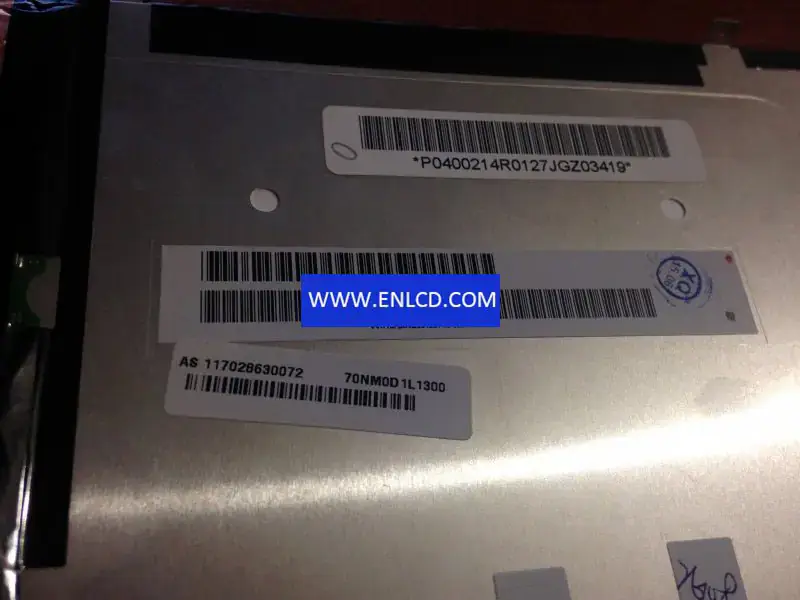

VVX10F004B00 Panasonic LCD panel replacement

Manufacturer：Panasonic
Screen Size： 10.1 inch
Pixel Number： 1920(RGB)×1200(WUXGA)
Active Area(mm)：217.44 × 135.9 (H×V)
Bezel Area(mm)：-
Luminance：600 (Min.)(cd/m2)
Viewing Angle：80/80/80/80 (Min.)(CR≥100)
Good View at：Symmetry
Color Depth：16.7M 50% (CIE1931)
Mass： 137g
Refresh Rate：60Hz
Model Name：VVX10F004B001 Compatible
Screen Type：LCM ,a-Si TFT-LCD
Arrangement：RGB Vertical Stripe
Outline(mm)： 228.86 × 152.5 × 4.48 (H×V×D)
Treatment：Hard coating, Antireflection
Contrast Ratio： 1000 : 1 (Typ.) (TM)
Work Mode： IPS, Normally Black, Transmissive
Response：30 (Typ.)(Tr+Td) ms
Backlight：10S6P WLED, With LED Driver
Used for： Pad & Tablet, Medical Imaging,
Touchscreen：Without
Signal Type：MIPI (4 data lanes), Connector, 45 pins
Voltage Supply： 2.5/3.3V (Typ.)(IOVDD/VDD)
Max. Ratings： Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
