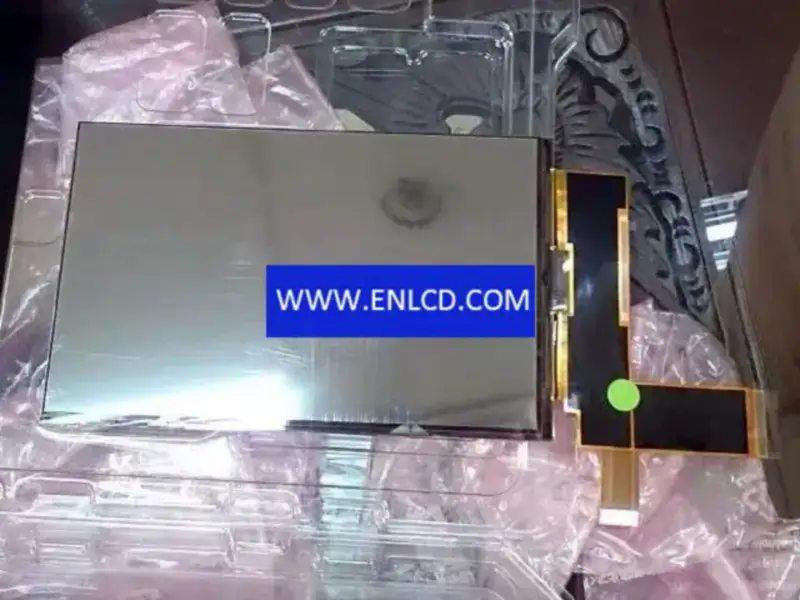

VVF07H119A90 Panasonic LCD panel replacement for Pad & Tablet

SKU: VVF07H119A90 Category:




Manufacturer:Panasonic
Model Name:VVF07H119A90
Screen Size:7.0 inch
Screen Type:CELL,a-Si TFT-LCD
Pixel Number:800(RGB)×1280 (WXGA)
Arrangement:RGB Vertical Stripe
Active Area(mm): 94.2 × 150.72 (H×V)
Outline(mm): –
Bezel Area(mm): –
Treatment: Hard coating
Luminance:0 cd/m2
Contrast Ratio:1000 : 1 (Typ.) (TM)
Viewing Angle: 80/80/80/80 (Min.)(CR≥100)
Response: 30 (Max.)(Tr+Td) ms
Good View at: Symmetry
Work Mode: IPS, Normally Black, Transmissive
Glass Thickness:0.25+0.25 mm
Transmissivity:4.5% (Typ.)(with Polarizer)
Color Depth:262K 60%(CIE1931)
Backlight:No B/L, No Driver
Mass: 32.0g
Used for: Pad & Tablet,
Refresh Rate:60Hz
Touchscreen:Without
Signal Type: MIPI (4 data lanes), Connector , 34 pins
Voltage Supply:1.8/3.3V (Typ.)(VCC/VDD)
Max. Ratings: Storage Temp.: -20 ~ 60 °COperating Temp.: 0 ~ 50 °C

Weight 0.3 kg
Brand

Size

7"

Resolution

Composition

Brightness

CR

Colors

Backlight

Interface

Application

Model

VVF07H119A90
