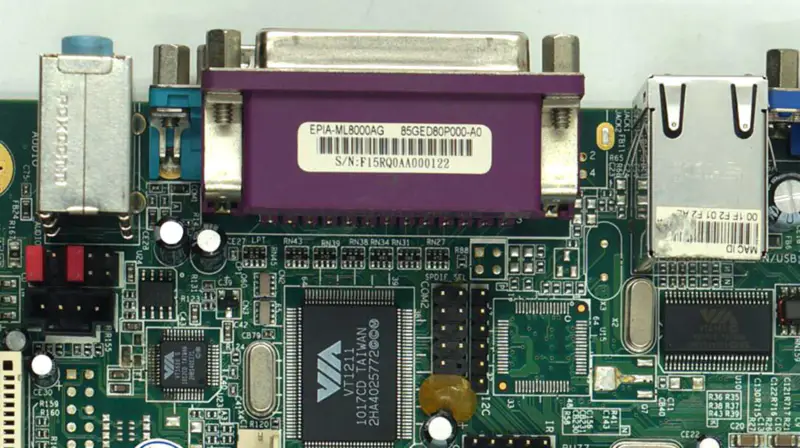

VIA EPIA-ML8000AG Motherboard

Name: VIA EPIA-ML8000AG Motherboard
SKU: ENLCD0003131
Price: 78 USD
Availability: InStock

Stock:

SKU:{{ product.sku }}

Model: {{ product.model }}

weight: {{ product.weight }} Kilogram

{{ variable.name }} : {{ variable.values[selectedVariantsIndex[variable_index]].name }}

Quantity:

Product Details

Motherboard Specification

Processor	800MHz VIA C3®
Chipset	VIA CLE266 North Bridge VIA VT8235M South Bridge
System Memory	1 x DDR266 DIMM socket Up to 1GB memory size
VGA	Integrated VIA UniChrome™ AGP graphics with MPEG-2 decoding acceleration
Expansion Slot	1 x PCI slot
Onboard IDE	2 x UltraDMA 133/100/66 connectors
Onboard LAN	1 x VIA VT6103 10/100 Mbps Ethernet PHY
Onboard Audio	VIA VT1616 6-channel AC’ 97 codec
Onboard I/O Connectors	1 x USB connector for 2 additional USB 2.0 ports 1 x Serial port connector for a second COM port 1 x Buzzer 1 x FIR connector 1 x CIR connector (switchable for KB/MS) 1 x Wake-on LAN connector 1 x SMBus connector 1 x CD audio-in connector 1 x Front panel audio connector for Line-out and Mic-in 3 x Fan connectors for CPU/Sys FAN/Fan 3 1 x ATX power connector
Back Panel I/O	1 x PS2 mouse port 1 x PS2 keyboard port 1 x VGA port 1 x RJ-45 LAN port 2 x USB 2.0 ports 1 x Parallel port 1 x Serial port 3 x Audio jacks: Line-out, Line-in and Mic-in (horizontal, Smart 5.1 support)
BIOS	Award BIOS 2Mbit flash memory
Operating System	Windows XP, Linux, Win CE, Xpe
System Monitoring &Management	CPU voltage monitoring Wake-on LAN, Keyboard Power-on, Timer Power-on System power management AC power failure recovery
Operating Temperature	0° C – 50° C
Operating Humidity	0% ~ 93% (relative humidity; non-condensing)
Form Factor	Mini-ITX (4-layer) 17 cm x 17 cm
