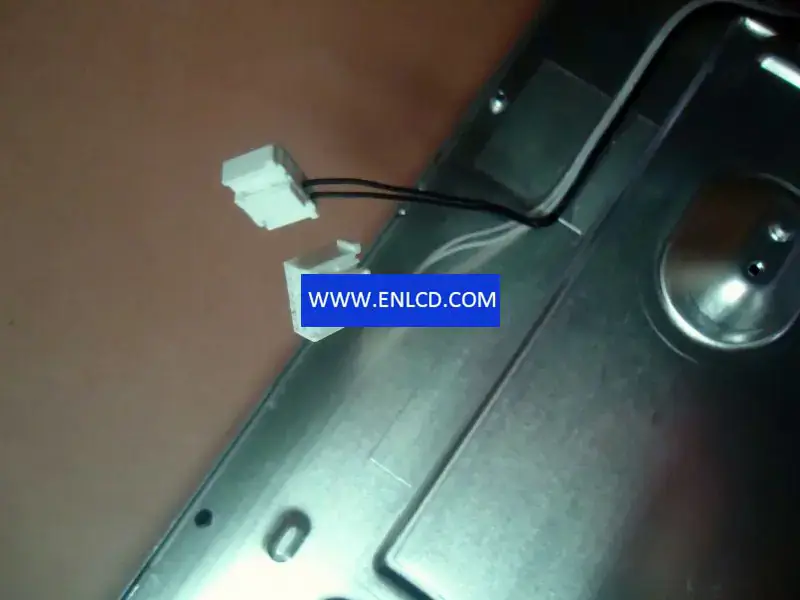

V315H3-LE1 Innolux LCD panel replacement

Panel Brand：Chimei Innolux
Panel Size：31.5 inch
Resolution：1920(RGB)×1080 , FHD
Display Area：698.4(W)×392.85(H) mm
Outline Size：739.6(W)×440(H) mm
Brightness：400 cd/m2 (Typ.)
Viewing Angle：88/88/88/88 (Typ.)(CR≥20)
Best View on：Symmetry
Display Colors：16.7M72%(CIE1931)
Frequency： 60Hz
Weight：4.20Kgs (Typ.)
Panel Model：V315H3-LE1
Panel Type：a-Si TFT-LCD , LCM
Pixel Format： RGB Vertical Stripe
Bezel Opening：703.6(W)×399.0(H) mm
Surface：Antiglare (Haze 11%), Hard coating (3H)
Contrast Ratio：4000:1 (Typ.) (TM)
Display Mode： Super MVA, Normally Black, Transmissive
Response Time：8.5 (Typ.)(G to G)
Lamp Type： 2 strings WLED , 30K hours , Without Driver
Touch Screen：Without
Application： TV Sets, Digital Signage,
Signal Interface： LVDS (2 ch, 8-bit), 51 pins , Connector
Input Voltage： 12.0V (Typ.)
Environment： Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C
