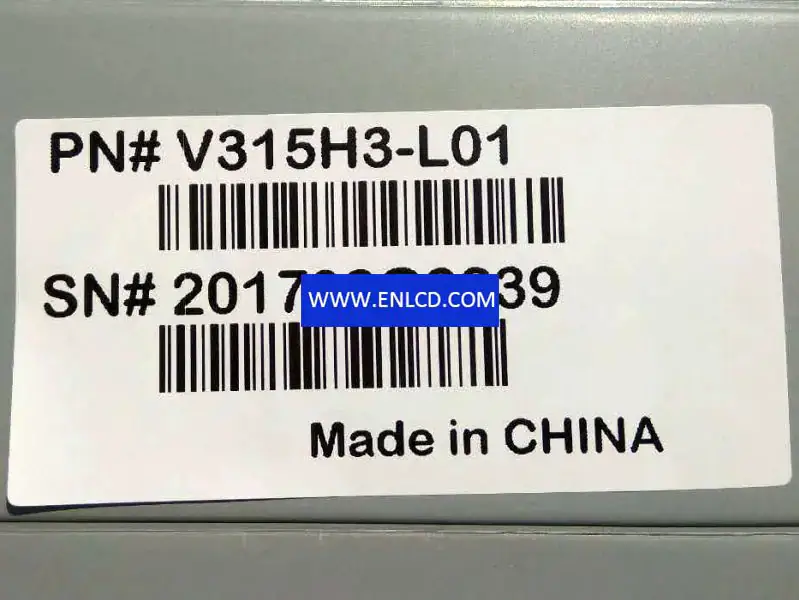

V315H3-L01 Innolux LCD panel replacement for TV Sets

Panel Brand：Chimei Innolux
Panel Size：31.5 inch
Resolution：1920(RGB)×1080 , FHD
Display Area：698.4(W)×392.85(H) mm
Outline Size：760(W)×450(H) mm
Brightness：450 cd/m2 (Typ.)
Viewing Angle：88/88/88/88 (Typ.)(CR≥20)
Best View on：Symmetry
Display Colors：16.7M72%(CIE1931)
Frequency： 60Hz
Weight：5.15Kgs
Panel Model：V315H3-L01
Panel Type：a-Si TFT-LCD , LCM
Pixel Format： RGB Vertical Stripe
Bezel Opening：703.8(W)×399.0(H) mm
Surface：Antiglare (Haze 11%), Hard coating (3H)
Contrast Ratio：6000:1 (Typ.) (TM)
Display Mode： MVA, Normally Black, Transmissive
Response Time：8.5 (Typ.)(G to G)
Lamp Type： 4 pcs CCFL , 50K hours , With Inverter
Touch Screen：Without
Application： TV Sets,
Signal Interface： LVDS (2 ch, 8-bit), 51 pins , Connector
Input Voltage： 12.0V (Typ.)
Environment： Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C
