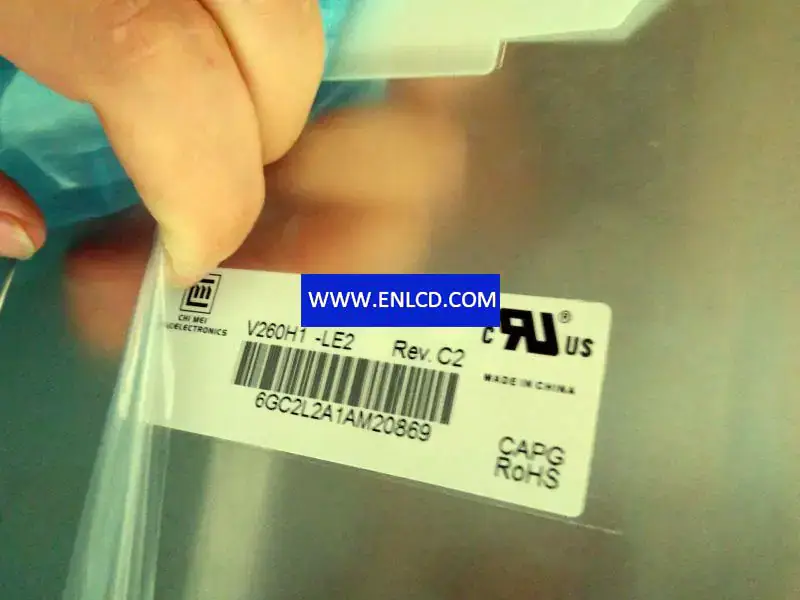

V260H1-LE2 Innolux LCD panel replacement

Manufacturer：Chimei Innolux
Screen Size： 26.0 inch
Pixel Number： 1920(RGB)×1080(FHD)
Active Area(mm)：576 × 324 (H×V)
Bezel Area(mm)：580.2 × 328.2 (H×V)
Luminance：400 (Typ.)(cd/m2)
Viewing Angle：80/80/75/75 (Typ.)(CR≥10)
Good View at：-
Color Depth：16.7M 70% (CIE1931)
Mass： 2.60Kgs (Typ.)
Refresh Rate：60Hz
Model Name：V260H1-LE2
Screen Type：LCM ,a-Si TFT-LCD
Arrangement：RGB Vertical Stripe
Outline(mm)： 613 × 361(H×V×D)
Treatment：Antiglare (Haze 25%), Hard coating (3H)
Contrast Ratio： 800 : 1 (Typ.) (TM)
Work Mode： TN, Normally White, Transmissive
Response：1.5/3.5 (Typ.)(Tr/Td) ms
Backlight：13S6P WLED , 30K hours , No Driver
Used for： TV Sets,
Touchscreen：Without
Signal Type：LVDS (2 ch, 8-bit), Connector, 51 pins
Voltage Supply： 12.0V (Typ.)
Max. Ratings： Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
