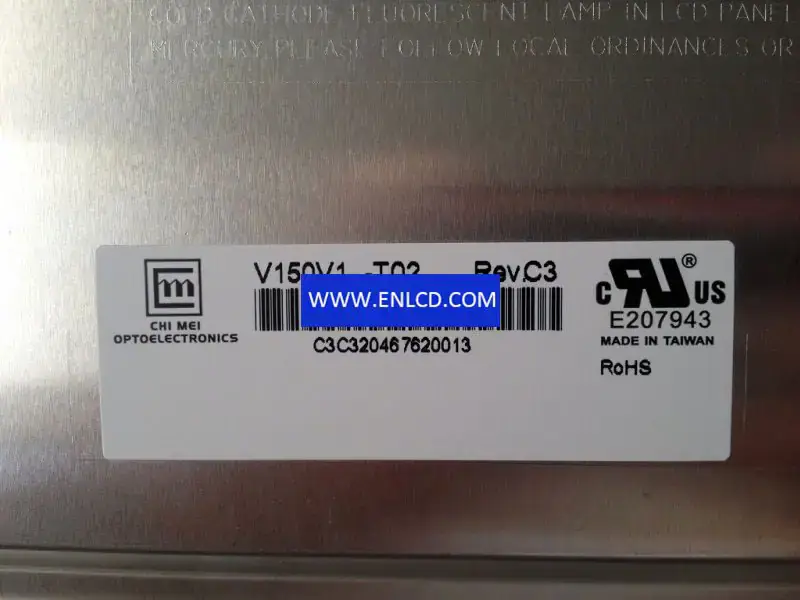

V150V1-T02 Innolux LCD panel replacement for TV Sets

Panel Brand：CMO
Panel Model：V150V1-T02
Panel Size：15.0 inch
Panel Type：a-Si TFT-LCD, LCM
Resolution：640(RGB)×480 , VGA
Pixel Format：RGB Vertical Stripe
Display Area：305.28(W)×228.96(H) mm
Bezel Opening：311.2(W)×235.0(H) mm
Outline Size：331.2(W)×256(H) mm
Surface：Antiglare (Haze 25%), Hard coating (3H), Reflection 2.0% (Max.)
Brightness：500 cd/m2 (Typ.)
Contrast Ratio：800:1 (Typ.) (TM)
Viewing Angle：88/88/88/88 (Typ.)(CR≥20)
Display Mode：Super MVA, Normally Black, Transmissive
Best View on：Symmetry
Response Time：15/10 (Typ.)(Tr/Td)
Display Colors：16.2M 72%(CIE1931)
Lamp Type：4 pcsCCFL, 60K hours, Without Driver
Frequency：60Hz
Touch Screen：Without
Panel Weight： 1.26±0.10Kgs
Application： TV Sets,
Signal Interface： TTL (1 ch, 8-bit), 50 pins, Connector
Input Voltage：5.0V (Typ.)(VCC)
Environment：Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C
