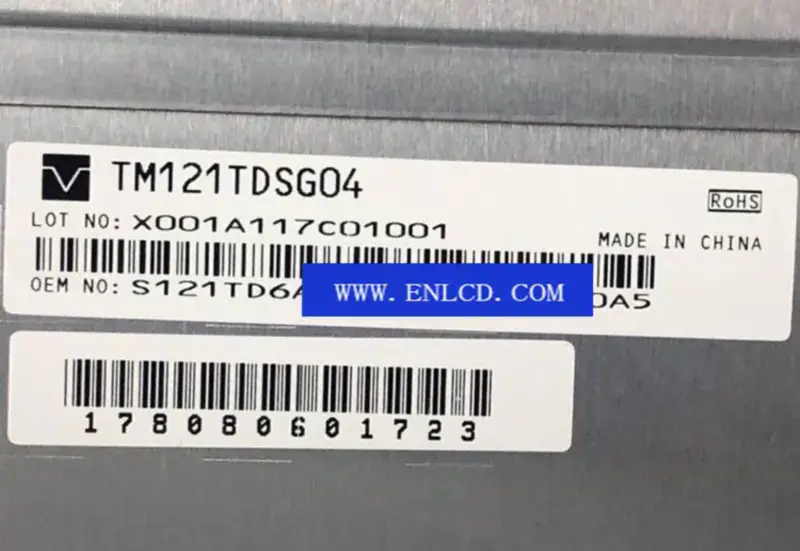

TM121TDSG04 TIANMA LCD panel replacement for Industrial Application

TM121TDSG04 TIANMA LCD panel replacement for Industrial Application

Manufacturer：TIANMA
Model Name：TM121TDSG04
Screen Size：12.1 inch
Screen Type：a-Si TFT-LCD, LCM
Pixel Number：1024(RGB)×768 , XGA
Pixel Format：RGB Vertical Stripe
Active Area(mm)： 245.76(W)×184.32(H) mm
Outline(mm)：260.5(W)×204(H) ×8.9(D) mm
Bezel Area(mm)： 249.0(W)×187.5(H) mm
Brightness： 600 cd/m² (Typ.)
Contrast Ratio：700:1 (Typ.) (TM)
Viewing Angle： 80/80/80/80
Display Mode： TN, Normally White, Transmissive
Best View on： 3 o’clock
Response Time：16 (Typ.)(Tr+Td)
Display Colors：262K/16.7M 55% (CIE1931)
Lamp Type：8S4P WLED , 50K hours , With LED Driver
Frequency：60Hz
Touchscreen：without
Signal Type：LVDS (1 ch, 6/8-bit) , 20 pins , Connector
Max. Ratings：Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C
