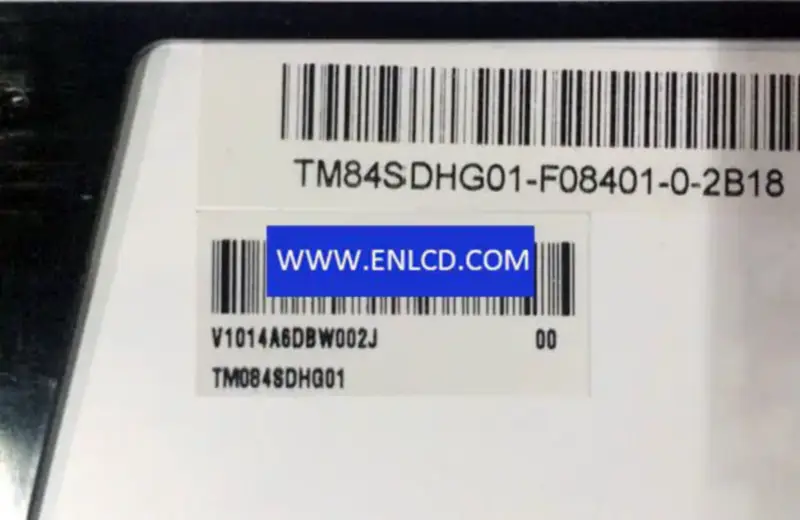

TM084SDHG01 Tianma LCD panel replacement for Industrial Application

Manufacturer：TIANMA
Screen Size： 8.4 inch
Pixel Number： 800(RGB)×600(SVGA)
Active Area(mm)：170.4 × 127.8 (H×V)
Bezel Area(mm)：173.2 × 130.6 (H×V)
Luminance：350 (Typ.)(cd/m2)
Viewing Angle：70/70/60/70 (Typ.)(CR≥10)
Good View at：12 o'clock
Color Depth：262K/16.7M 50% (CIE1931)
Mass： 185.1g
Refresh Rate：60Hz
Model Name：TM084SDHG01
Screen Type：LCM ,a-Si TFT-LCD
Arrangement：RGB Vertical Stripe
Outline(mm)： 203 × 142.5 × 5.9 (H×V×D)
Treatment：Antiglare
Contrast Ratio： 500 : 1 (Typ.) (TM)
Work Mode： TN, Normally White, Transmissive
Response：20 (Typ.)(Tr+Td) ms
Backlight：3S7P WLED , 50K hours , With LED Driver
Used for： Industrial Application,
Touchscreen：Without
Signal Type：LVDS (1 ch, 6/8-bit), Connector, 20 pins
Voltage Supply： 3.3V (Typ.)
Max. Ratings： Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C
